Factory Price Shacman F2000 6x4 10 Wheels Water Tank Truck Road Sprinkler Sanitation Vehicle for Hot Sale
- Commodity name： Factory Price Shacman F2000 6x4 10 Wheels Water Tank Truck Road Sprinkler Sanitation Vehicle for Hot Sale
- Condition： Brand New
- Tyre Quantity： 10 tyre
- Engine Power： 340HP
- Driving Type： 6×4
Keyword:
Product Description

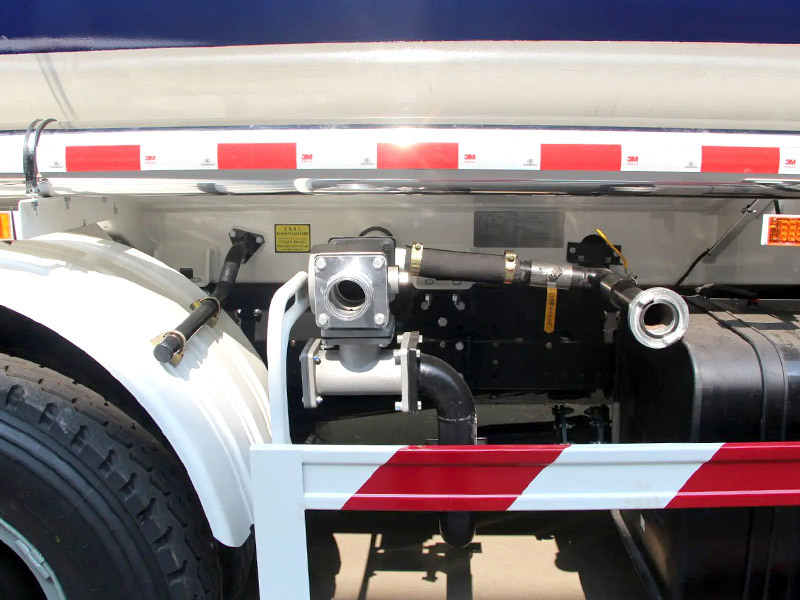

Shacman F2000 6x4 Sprinkler Truck has forward flushing, rear sprinkling, side spraying, working platform behind the tank, and green sprinkling antiaircraft gun installed on the platform. The sprinkler can rotate 360 ° in all directions, and can be continuously adjusted into direct impact, heavy rain, moderate rain, light rain, drizzle, etc. a special high-power sprinkler pump is selected, with fire connector, gravity valve, self-priming and self-drainage functions.
The sprinkler tank body is oval or square and round in structure, made of high-quality carbon steel, formed at one time by large plate bending machine, advanced equipment and automatic welding process, with more beautiful appearance and excellent sealing performance. The water tank of the whole vehicle is 2-3 rooms, the lower end of the middle diaphragm is provided with a through hole, and the tank is equipped with anti swing and anti wave diaphragm. The diaphragm in the tank has anti wave function to reduce the impact of liquid in the tank when the vehicle is driving. The surface of 6x4 Sprinkler Truck shall be coated with antirust paint and decorative paint.
Product feature and application
Built for city and suburban use, Shacman F2000 sprinkler truck have been used in city sanitation departments in China and around the globe. With high attendance rate, Shacman F2000 sprinkler truck is very reliable and can fulfill the requirements of high usage by its operator.
Product details
● American VISTEON interior utilizing 100% natural negative ion fiber fabric. New material sleeper can promote rest quality.
●Advanced noise isolation technology and strengthened vehicle body structure, and the application of polyester material can reduce cab noise greatly and increase insulation qualities.
● Adjustable steering wheel, which is easy to operate with great man-machine performance.
● Optimized shift operation: Telescopic shaft shift operation can absorb vibration from the chassis and ensure no spontaneous out of gear and control performance, improve the cab seal.
● Integrated structure floor mat is equipped with protective strips, great insulation, easy to clean and have good noise reduction properties.
Parameter
| Transport type | Shacman F2000 Sprinkler |
| Logistics type | Water |
| Distance(km) | ≤50 |
| Road type | Paved roads |
| Drive | 6x4 |
| Max weight(t) | ≤40 |
| Crusing speed/Max speed(km/h) | 90 |
| Loaded speed(km/h) | 50~70 |
| Vehicle model | SX5255GSSJN434 |
| Engine | WP10.340E22 |
| Emission standard | Euro Ⅱ |
| Displacement | 9.726L |
| Rated output | 220kw |
| Max.torque | 1240N·m |
| Transmission | RTD11509C+QH50 |
| Clutch | 430 |
| Frame | 850x300(8+5) |
| Front axle | MAN 7.5T |
| Rear axle | 13T MAN double reduction 5.262 |
| Tire | 12.00R20 |
| Front Suspension | Multi leaf springs |
| Rear Suspension | Multi leaf springs |
| Fuel | Diesel |
| Capacity of the fuel tank | 400L ( Aluminum shell ) |
| Battery | 165Ah |
| Dimensions(L×W×H) | 9700x2490x3300 |
| Volume(m³) | 20 |
| Wheelbase | 4375+1400 |
| Approach/Departure angle(°) | 25/19 |
| Max.gradeability(%) | 34 |
| Cab | Type | Shacman F2000, lengthened flat roof | |
| Equipments | ◆Rear window ◆Mechanical clerestory ◆Hydraulic suspension of cab ◆Hydraulic driver seat with seatbelts ◆One sleeping bed ◆Hydraulic reversal ◆Radio with MP3 player |
||
| Optional | ●Air cushioned drivers seat ●Full vehicle WABCO valve ●Electronic air conditioning with temperature control |
||
