Complete Specifications Shacman X9 Garbage Truck Waste Collector Compressed Garbage Truck for sale
- Commodity name： Complete Specifications Shacman X9 Garbage Truck Waste Collector Compressed Garbage Truck for sale
- Condition： Brand New
- Tyre Quantity： 6 tyre
- Driving Type： 4×2
Keyword:
Product Description

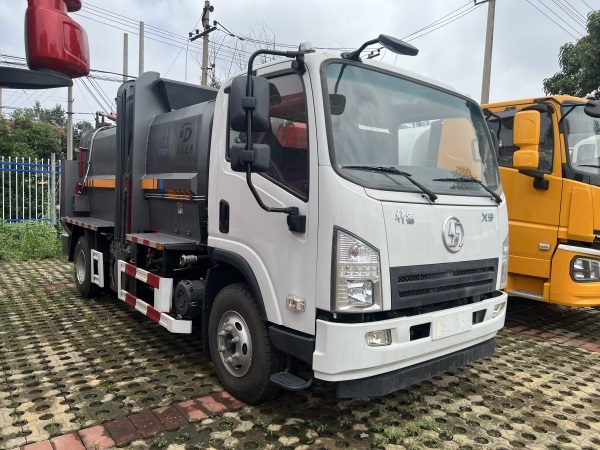

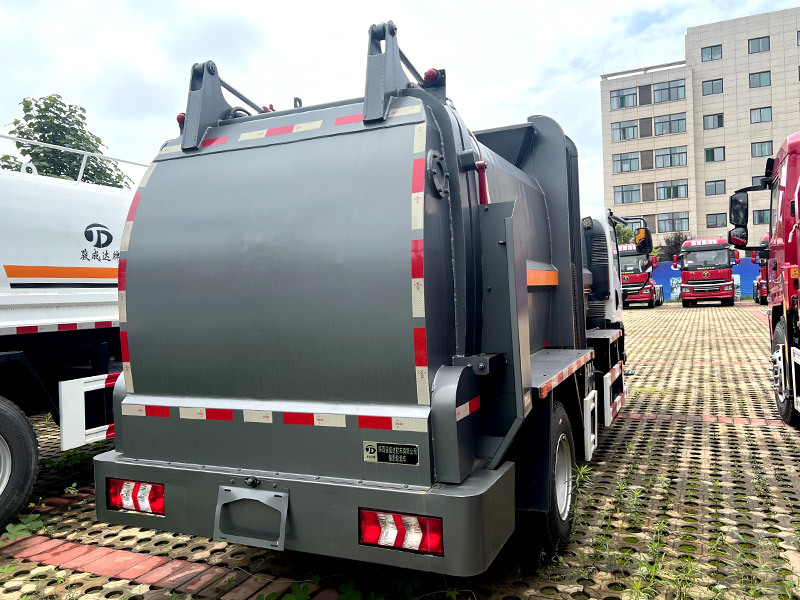

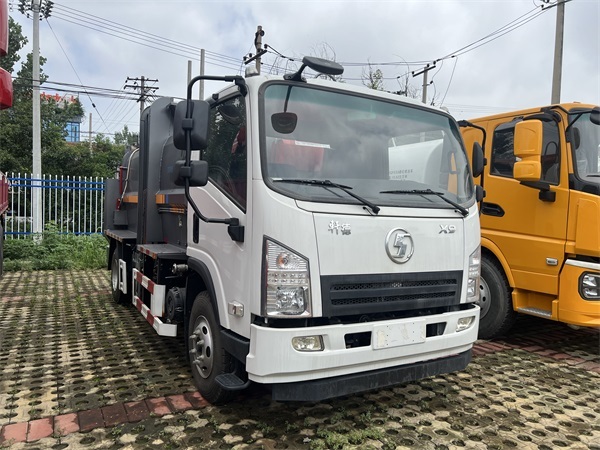

Shacman X9 garbage compressor kind of vehicle specially used for garbage compression and transportation, which consists of a sealed garbage compartment, a hydraulic system and an operating system. The design of this vehicle is mainly to solve the problem of secondary pollution in the process of garbage transportation, through the fully sealed design, the garbage compressor can compress and dump the garbage by itself, while ensuring that the sewage generated during the compression process all enters the sewage compartment, thus effectively reducing the pollution in the garbage transportation process and avoiding the inconvenience to people. The key parts of the garbage compressor are imported parts, which have the advantages of high pressure, good sealing, easy operation and safety. In addition, the garbage compressor can also be selected with a rear-hanging bucket flipping mechanism or a garbage bucket flipping mechanism to adapt to different use scenarios.
The main advantage of the garbage compressor is that it compresses and compacts the garbage, thereby reducing the number of garbage truck transportation and avoiding the pollution caused by the fluffiness of the garbage flying around. This vehicle is suitable for the transportation of domestic waste, because domestic waste is usually relatively fluffy, occupies a large area space, and requires frequent transportation. Through compression, it can not only reduce the number of transportation, but also improve the loading capacity, while improving the efficiency of garbage removal, reducing labor and transportation costs, and realizing the mechanization of garbage removal.
Shacman X9 garbage compressor also has the characteristics of large loading capacity, high compression ratio and good sealing, which can collect domestic garbage from multiple villages at the same time, avoid the secondary pollution problems such as garbage odor floating and spilling on the ground, greatly improve the efficiency and quality of domestic garbage removal, and provide a cleaner and hygienic living environment for residents。
Parameter
| Shacman 4x2 Garbage Truck | |
| Drive type | 4x2 |
| Brand | SX5108GP321 |
| Weight | / |
| Complete kerb mass (kg) | 4000 |
| Gvw (kg) | 8200 |
| Dimensions | / |
| Appearance dimensions(mm) | L*W*H=6850*2200*2680 |
| Front/Rear overhang(mm) | 1200/1500 |
| Wheel base(mm) | 3300 |
| Track width(mm) | 1810/1800 |
| Performance | / |
| Max.speed (km/h) | 90 |

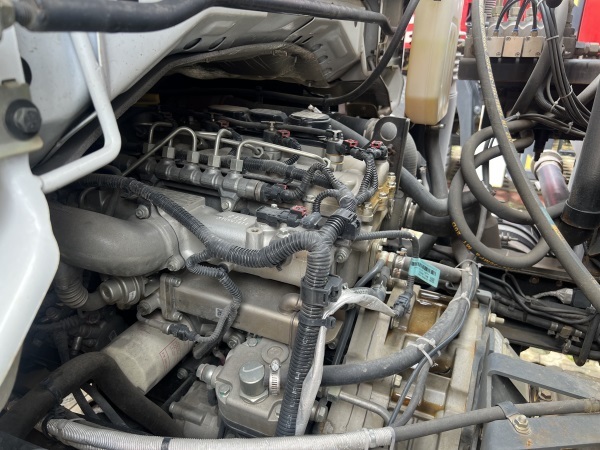

| Engine | / |
| Brand | YUNNEI |
| Model | YN4102QBZL |
| Power(kw/HP) | 85/115 |
| Max.Torque (N.m )/rpm | 290 |
| Displacement(L) | 3.76 |
| Emmission Standards | Euro Ⅱ |
| Transmission | / |
| Brand | WANLIYANG |
| Model | WLY5T40 |
| Control type | Manual |
| Gear Shift | 5-forward and 1 reverse speeds |
| Brakes | / |
| Type | Dual circuit compressed air brake |
| Service brake | Exhaust braking |
| Park brake | Rear wheel |
| Steering | / |
| Type | Hydraulic power |
| Suspension | / |
| Front Suspension | 75*11*7 |
| Rear Suspension | 75*11*10/75*centre13side7*3 |
| Axles | / |
| Front axle | 2500kg |
| Rear axle | 5000kg |
| Ratio | 4.875 |
| Tyres | / |
| Type (Standard) | 7.50R16 |
| Fueltank | / |
| Tank capacity(L) | 130 |
| Material | lron |
| Cab | / |
| Type | TJG131 |
| Equipments | Flat roof.one sleeper, radio .USB. with AC |
| Garbage Box Configuration | |
| Box capacity | 6 m3 |
| Compressing ratio | ≥1:4 (will be changed according to different material) |
| Loading type | Plastic bin lifter, 240L*2 |
| Tailgate capacity | 0.6m3 |
| material | Steel |
| Hydraulic oil tank | Factory standard |
| Drain tank | Two , front and rear |
| Lamps | LED lamps |
| Side railing | Steel |
| Caution light | Included |
| Control button | On right side |
| Emergency stop button | Each on left and right side |
| Box inside coating | Anti-rust coating |
| Box outside coating | Sand blasting before paint.Three layers of baking coating, finishing with all white paint,with reflective sticker (Red/hite) |
| Others | As per factory standard. |
