China Shacman H3000 6X4 22cbm Compressed Garbage Truck Garbage Compactor Truck for Sale
- Commodity name： China Shacman H3000 6X4 22cbm Compressed Garbage Truck Garbage Compactor Truck for Sale
- Condition： Brand New
- Tyre Quantity： 10 tyre
- Engine Power： 300HP
- Driving Type： 6×4
Keyword:
Product Description

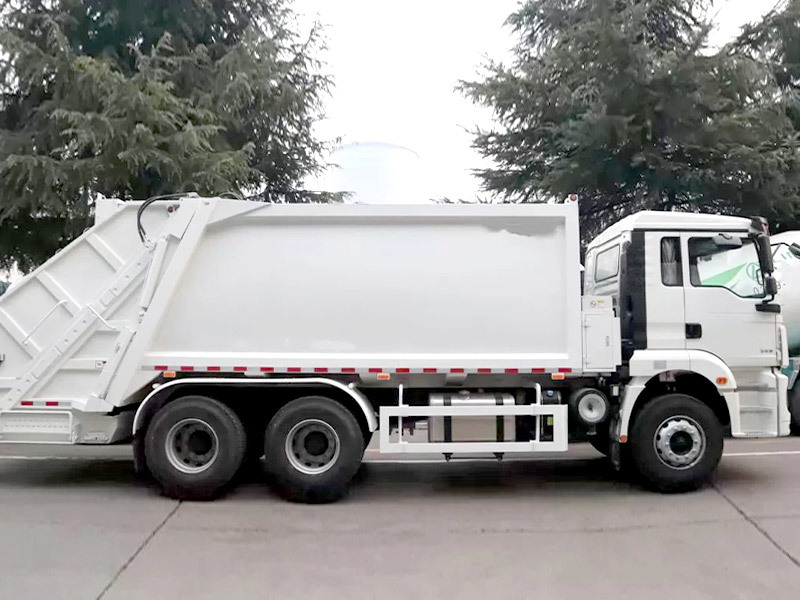

Shacman H3000 6X4 garbage compressor kind of vehicle specially used for garbage compression and transportation, which consists of a sealed garbage compartment, a hydraulic system and an operating system. The design of this vehicle is mainly to solve the problem of secondary pollution in the process of garbage transportation, through the fully sealed design, the garbage compressor can compress and dump the garbage by itself, while ensuring that the sewage generated during the compression process all enters the sewage compartment, thus effectively reducing the pollution in the garbage transportation process and avoiding the inconvenience to people. The key parts of the garbage compressor are imported parts, which have the advantages of high pressure, good sealing, easy operation and safety. In addition, the garbage compressor can also be selected with a rear-hanging bucket flipping mechanism or a garbage bucket flipping mechanism to adapt to different use scenarios.
The main advantage of the garbage compressor is that it compresses and compacts the garbage, thereby reducing the number of garbage truck transportation and avoiding the pollution caused by the fluffiness of the garbage flying around. This vehicle is suitable for the transportation of domestic waste, because domestic waste is usually relatively fluffy, occupies a large area space, and requires frequent transportation. Through compression, it can not only reduce the number of transportation, but also improve the loading capacity, while improving the efficiency of garbage removal, reducing labor and transportation costs, and realizing the mechanization of garbage removal.
Shacman H3000 6X4 garbage compressor also has the characteristics of large loading capacity, high compression ratio and good sealing, which can collect domestic garbage from multiple villages at the same time, avoid the secondary pollution problems such as garbage odor floating and spilling on the ground, greatly improve the efficiency and quality of domestic garbage removal, and provide a cleaner and hygienic living environment for residents。
Parameter
| Compression Garbage Truck Parameters | ||
| Model | SX5255ZYSMN384 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3775+1400 |
| Performance | Maximum speed/(km/h) | 45～60/80 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP10.300E22 | |
| Power/(kw/HP) | 220w / 300Hp | |
| Maximum torque / (N.M)/rpm | 1240 N·M | |
| Displacement/(L) | 9.762 L | |
| Emission standard | Euro/ II | |
| Gear box | Brand | FAST |
| Model | RTD-11509C+ QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+5) | |
| Suspension | Front | Multi-layered leaf springs |
| Rear | Multi-layered leaf springs | |
| Axles | Brand | HANDE |
| Front axle | 7.5T MAN | |
| Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN H3000 standard cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, with sunshade, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free battery, SHACMAN Logo, full English logo. | |
