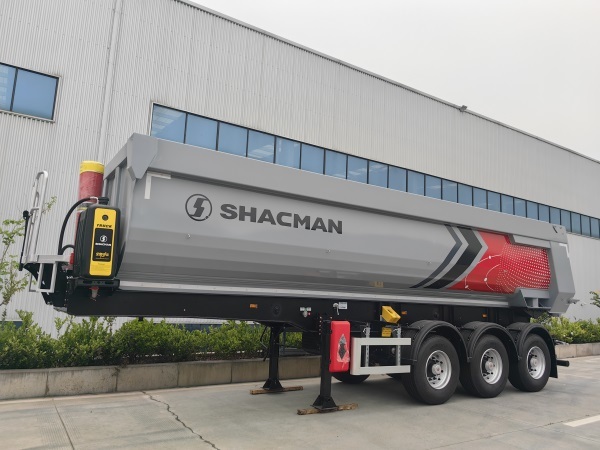

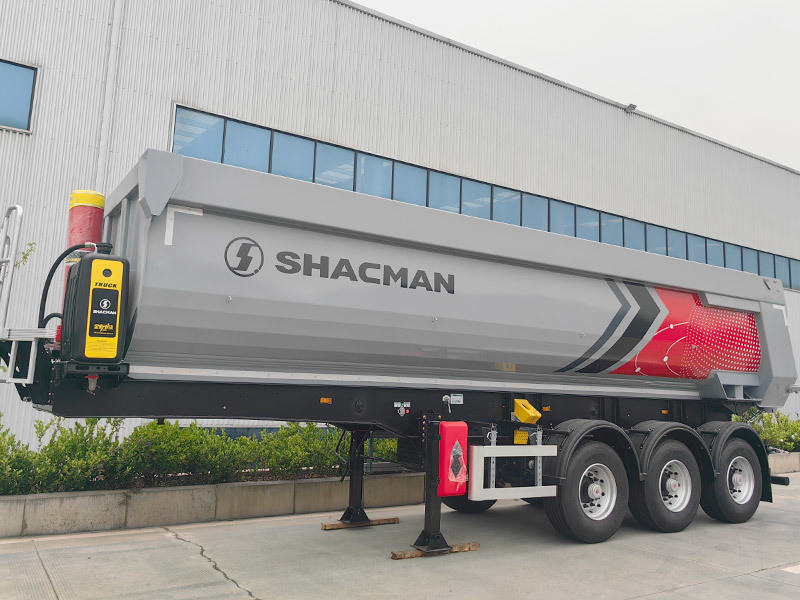

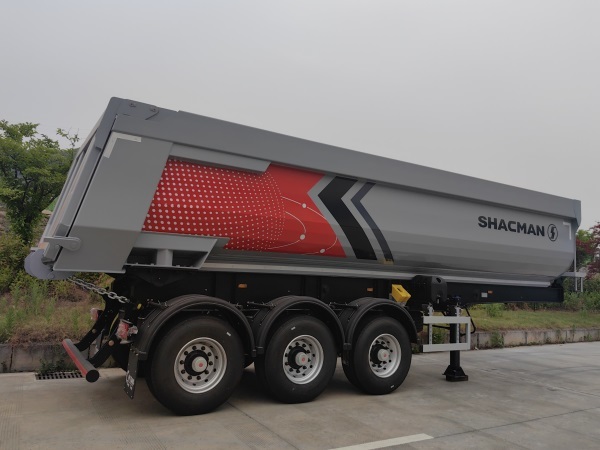

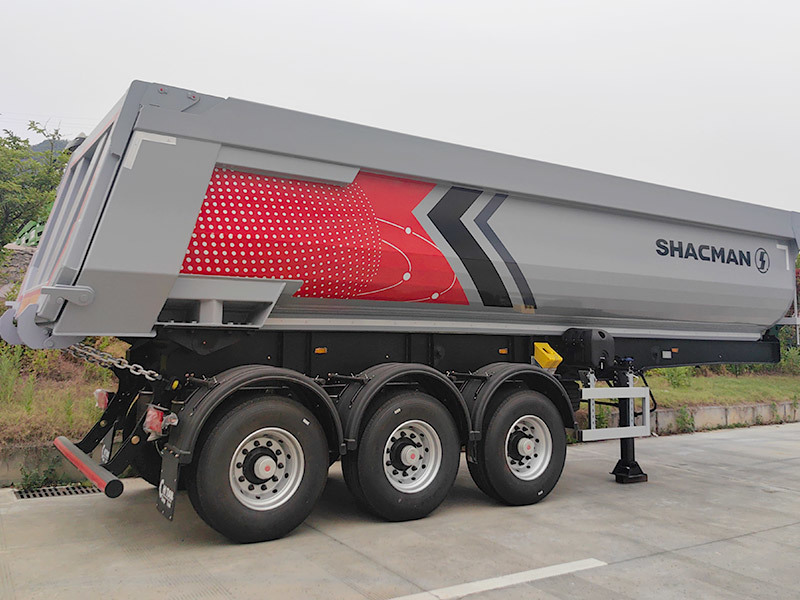

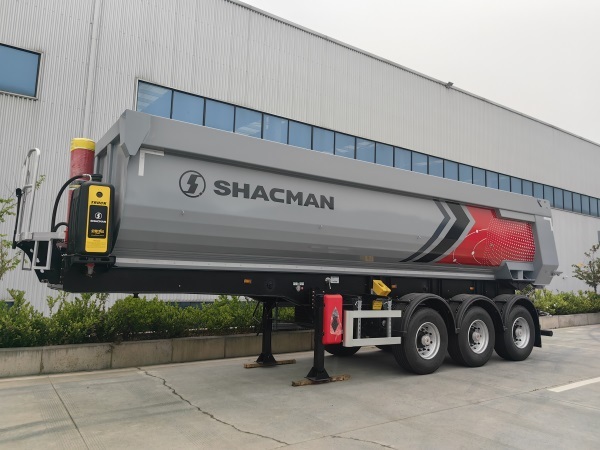

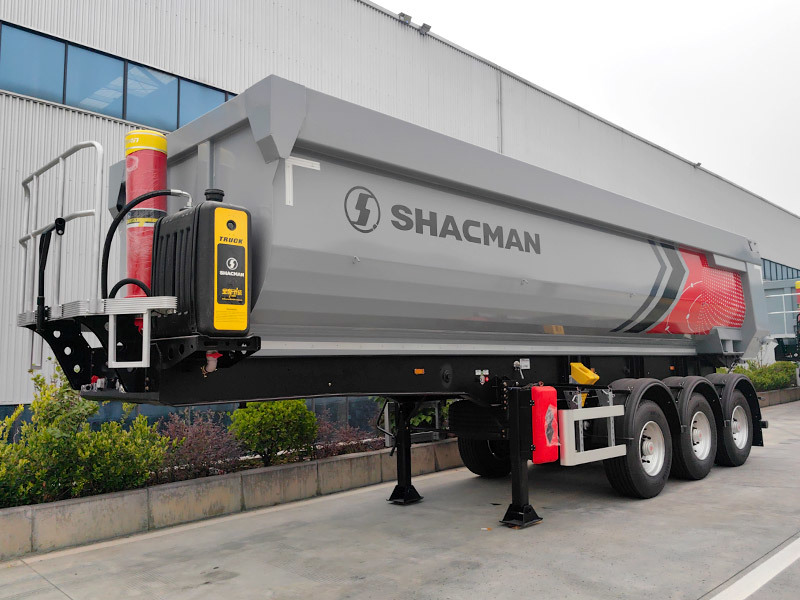

Brand New High Quality U Type Dump Semi Trailer/Tipping Trailer Dumper Trailer for Sale
- Commodity name： Brand New High Quality U Type Dump Semi Trailer/Tipping Trailer Dumper Trailer for Sale
- Brand Name： Shacman Anda
- Type： Semi-trailer
- Marerial： Steel Q345/Aluminum/Hardox
- Size/Load/Color： Customers Optional
- Tire： 12R22.5/12.00R20/385/65R22.5
Keyword:
Product Description
Dump truck semi-trailer is mainly used to transport large quantities of heavy materials such as rocks, gravel, sand and other construction-related items. This makes it an indispensable asset in the construction field, helping materials to be seamlessly transported to the job site. Carefully crafted to withstand the challenging conditions and heavy loads typical of construction sites, this trailer ensures reliability and durability.
Large-scale construction projects, mining industries benefit from this sturdy trailer as it is a key means of transport for ore, rock and other important materials in and out of processing plants. In this field, dump truck semi-trailers stand out, providing a safe, economical and efficient mode of transportation, which is essential for high-risk mining operations.
At the same time, our rear dump semi-trailer has OTTC certification and has a complete sales network and after-sales service in Africa, Central Asia, and Russia.
Product Exclusive Features
1. Applicable to transportation logistics, engineering construction, port loading and unloading, mining and other fields, mainly transporting sand, grain, coal and other goods.
2. The body panel is made of domestic high-quality high-strength wear-resistant steel, and the main load-bearing parts of the body are made of domestic high-quality high-strength steel, which improves the strength and wear resistance of the body and reduces the curb weight of the vehicle.
3. The body volume is large and the transportation efficiency is high.
4. The tailgate adopts a double hinge mechanism to avoid the accumulation of goods hindering the opening and closing of the tailgate
Parameter
| Semi Trailer Main Structure | |
| Product Type | Tipper Semi-Trailer |
| Main Chassis Material | Made of high quality and high strength Q345 steel, ;made of two welded long itudinal beams in I form with cross beams at needed distances (Optional special T700 steel for light weight design) |
| Body Material | Body is made of Q345/NM450 materials for maximum abrasiveness and impact resistance. (Optional special Hardox® 450 and Hardox® 500 Tuf steel for light weight design) |
| Tail Gate | Mechanical open, lengthwise, top-hinged (Optional hydraulic) |
| Volume | 30 m3 (Optional design with any volume) |
| Semi Trailer Axle Specification | |
| Number of Axles | 3 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Air suspension and equipment's (Optional any type) |
| Suspension Bellows and Type | 818 Type suspension bellows |
| Springs and Type | Parabolic double decked Z spring or other types |
| Shock Absorbers | Standard shock absorbers equipment |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 385/65 R 22.5 (Optional any compatible size) |
| Rim Dimensions | 22.5X11.75 steel rims with standard tire dimension |
| Total Tire & Rim Unit | With 385/65 R 22.5 option, totally 12 units (for 24m3) |
| Other Compatible Tire Sizes | 12 R 22.5 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Semi Trailer Hydraulic Equipment | |
| Hydraulic System | Five stages heavy duty cold-drawn telescopic cylinder |
| Hydraulic Oil Tank | Available as optional (Optionally oil tank has 70lt capacity or at the desired capacity. On the tank there are, 125" suction filter, and 25" return filter with ventilation, level indicator, special valve, and releasing tap) |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |

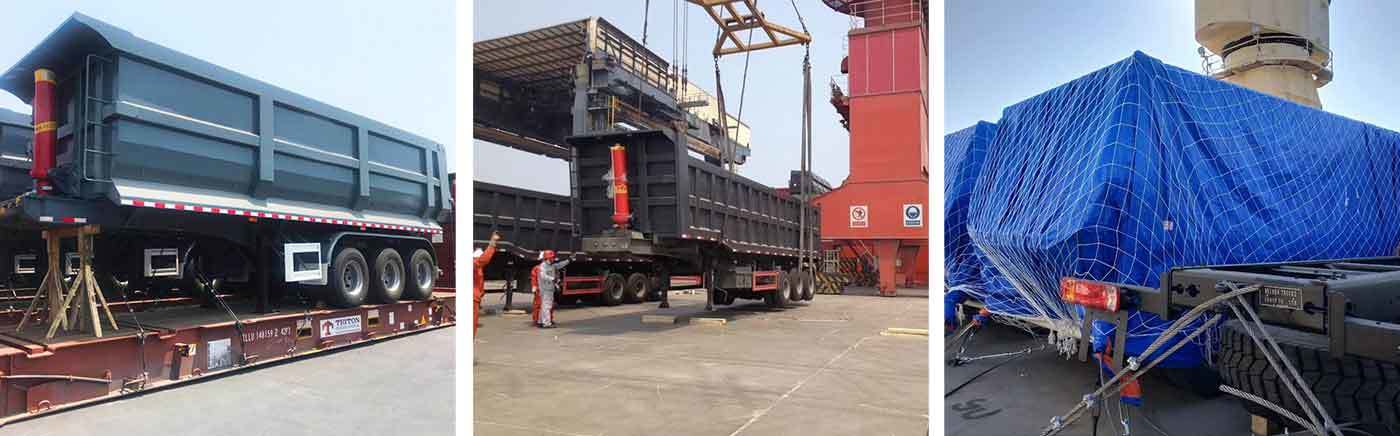

Packing And Delivery
