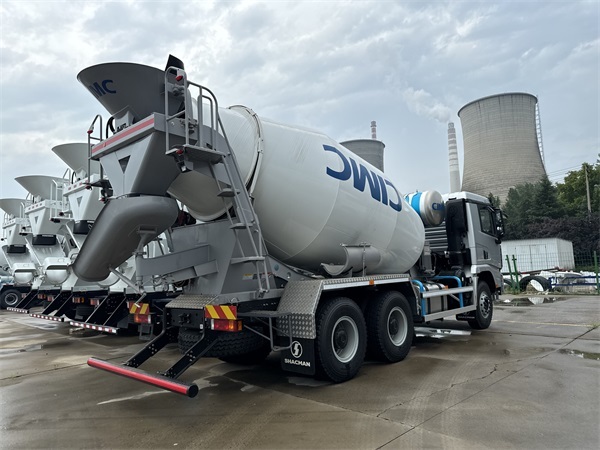

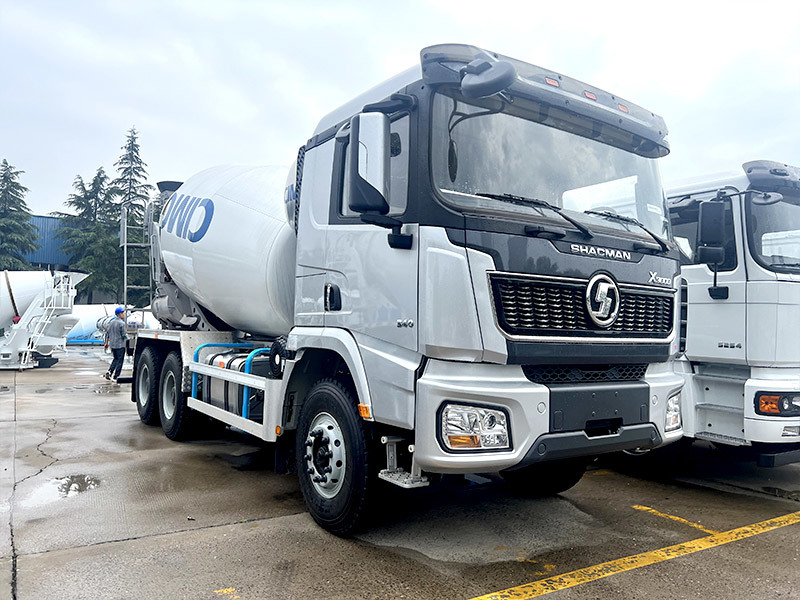

Shacman Concrete Machine X3000 10cbm Mobile Diesel Cement Concrete Mixers For Sale
- Commodity name： Shacman Concrete Machine X3000 10cbm Mobile Diesel Cement Concrete Mixers For Sale
- Condition： Brand New
- Tyre Quantity： 10 tyre
- Driving Type： 6×4
Keyword:
Product Description
Adopt MAN technology to strengthen the chassis, lower the center of gravity, high-strength wide straight beam, and the main and auxiliary beams are stamped and formed in one time by a 6000-ton press. The large-volume mixer truck chassis adopts a three-layer 8+7+8 beam, a widened frame design, and super load-bearing capacity to meet the modification needs of large-volume mixer trucks.
Special power
A customized ISM engine for mixer trucks is used to deal with the long-term low-speed, low-load, one-way standard load, and one-way empty operation of mixer trucks.
Cummins ISM11 engine, power quenching and upgrading, deep optimization of throttle characteristics, strong explosive power, more sensitive transient acceleration response when starting, climbing, and accelerating, the vehicle enters the steady-state condition faster, and realizes economic and efficient operation.
Professional fuel saving
C-Cloud intelligent service system, through the monitoring of the mileage, total fuel consumption and average fuel consumption per 100 kilometers of single vehicles and fleets, controls the real fuel consumption of vehicles, optimizes driving behavior, and saves 5%-10% of the fuel consumption cost of logistics fleets every year.
Cummins Celect fuel system, high injection pressure, good atomization effect, more complete combustion, obvious fuel saving effect
The electronically controlled silicone oil fan can automatically determine whether the machine is working to ensure that the engine temperature is always in an economical fuel consumption state.
The multi-power fuel saving switch can achieve three different powers to meet the user's power requirements under no-load, medium-load, heavy-load or different road conditions, effectively reducing fuel consumption.
Professional creation
Equipped with a large amount of upper body, the upper body and chassis are integrated into a design to maximize the performance of the vehicle and greatly improve the vehicle attendance rate. We work closely with more than 120 professional modification companies across the country, including Sany Heavy Industry, CIMC Vehicles, and Tangshan Yate, to meet your professional needs.
Parameter
| Platform | Shacman X3000 | |
| Drive type | 6X4 | |
| Vehicle model | SX5255GJB5R364C | |
| Vehicle Weight | GVW：15 tons | |
| GCW：35 tons | ||
| Frame | 850×300(8+7)mm | |
| Engine | Weichai | Emissions: Euro II to Euro V |
| Displacement: 10L – 12L | ||
| Power: 300 PS – 420 PS | ||
| Torque: 1200 Nm – 2100 Nm | ||
| Cummins | Emissions: Euro II to Euro V | |
| Displacement: 10L – 12L | ||
| Power: 340 PS – 420 PS | ||
| Torque: 1200 Nm – 2100 Nm | ||
| Transmission | 10JSD180 | |
| Clutch | φ430 | |
| Steering gear | ZF8098 | |
| Axle | Front axle: MAN 9.5 ton | |
| Rear axle: MAN 16 ton single or double reduction | ||
| Gear ratio: 4.769 – 5.92 | ||

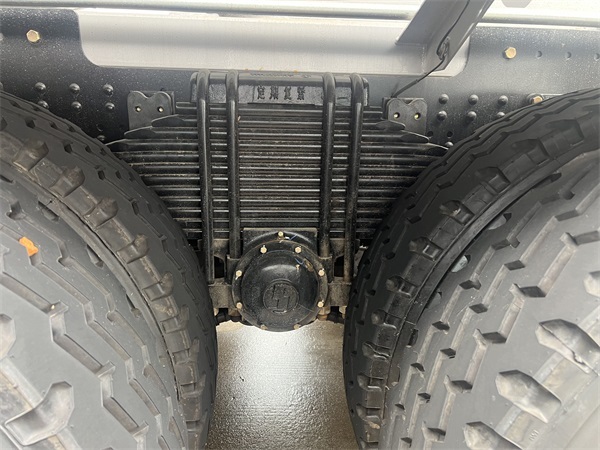

| Suspension | Multi leaf spring front and rear setup | |
| Tires | 315 / 80R22.5 | |
| 12R22.5 | ||
| 12.00R20 | ||
| Fuel tank | 400 - 700 liter aluminum or steel tank | |
| Dimensions(LxWxH) | 8000X2490X3250 | |
| Volume(m³) | 8-10 | |
| Wheelbase | 3775+1400mm | |
| Approach/Departure angle(°) | 20/18 | |
| Max.gradeability(%) | 34 | |
| Cab | Type | Shacman X3000, lengthened flat roof |
| Equipments | ◆Rear window ◆Manual sunroof ◆Hydraulic driver seat with seatbelts ◆Hydraulic suspension of cab ◆Electronic air conditioning with temperature control ◆Electric window ◆Radio with MP3 piayer |
|
| Optional | ●Air cushioned drivers seate ●Central locking |
|

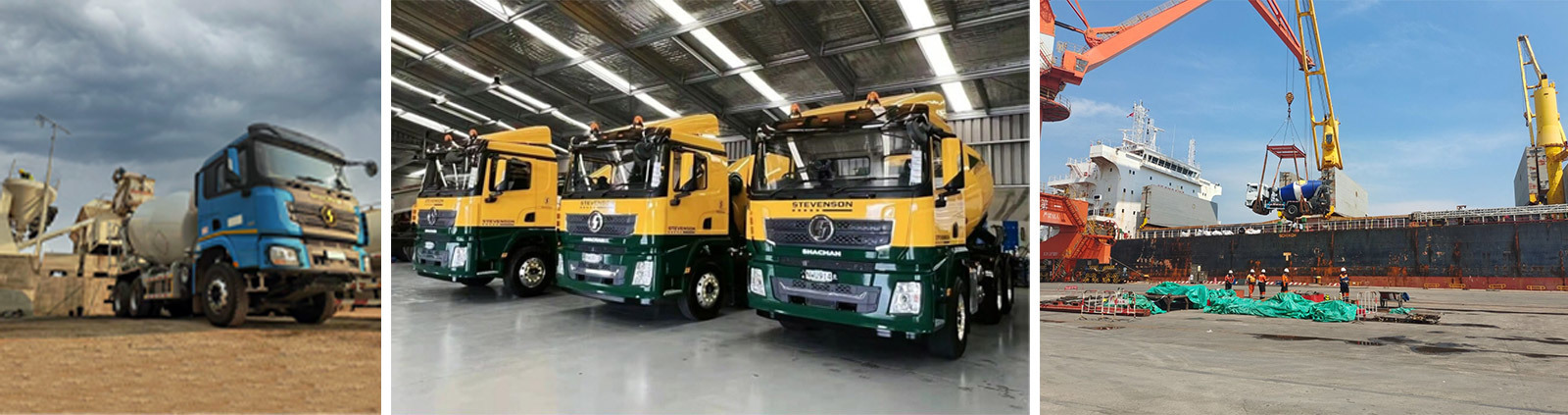

Packaging And Delivery

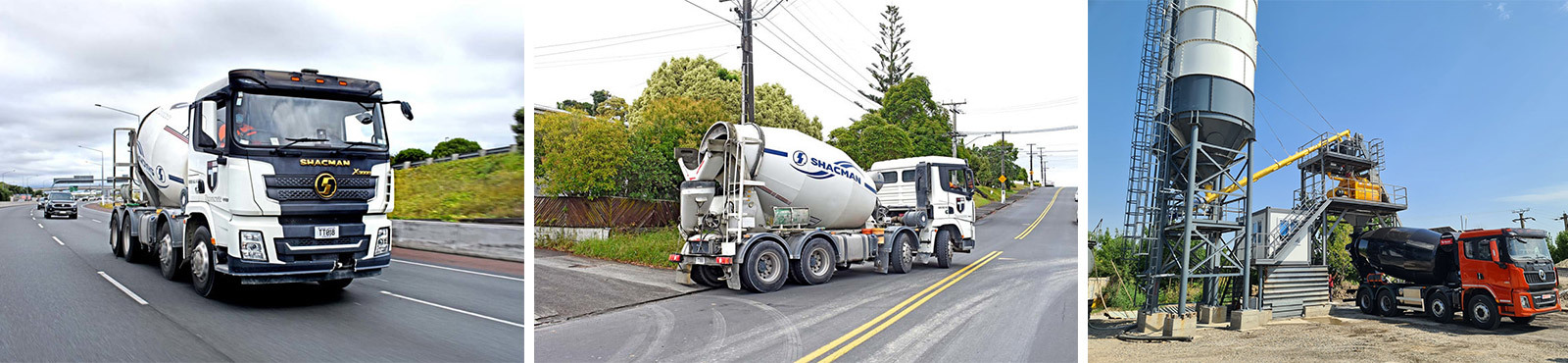

Overseas Use

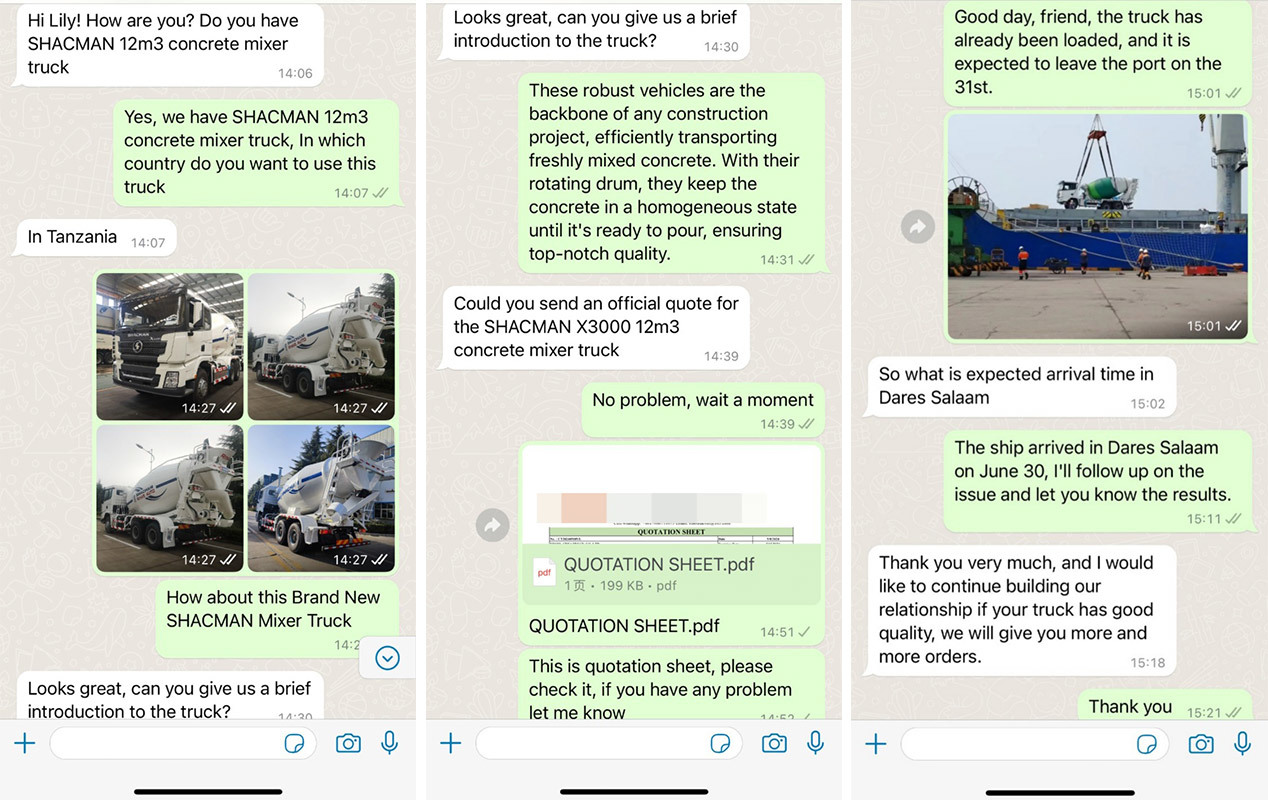

Chat History
