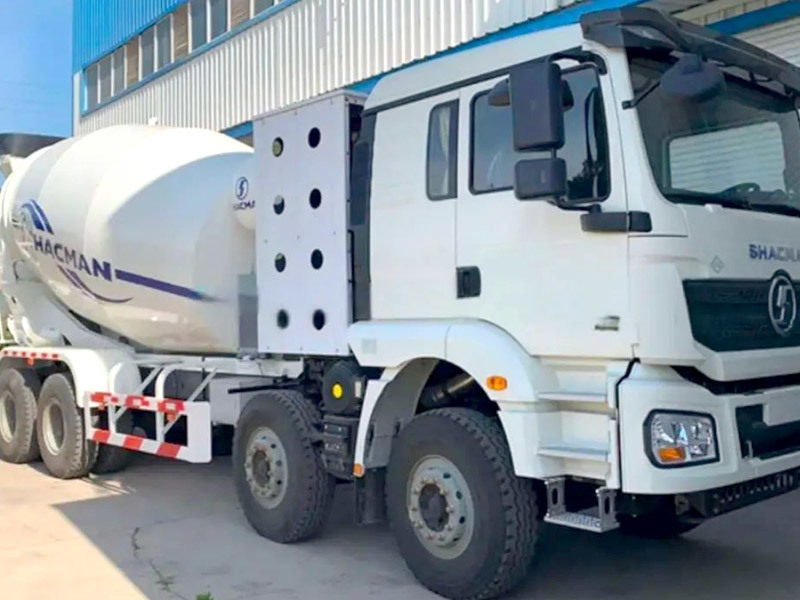

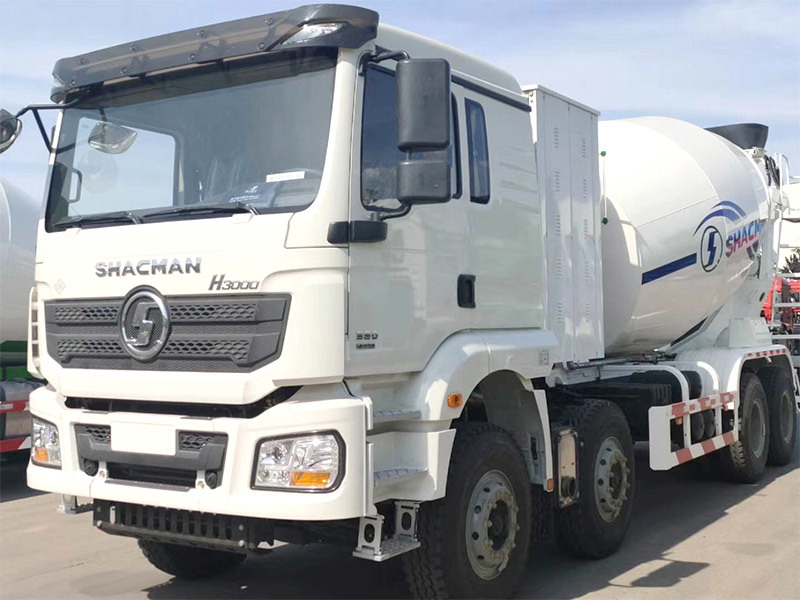

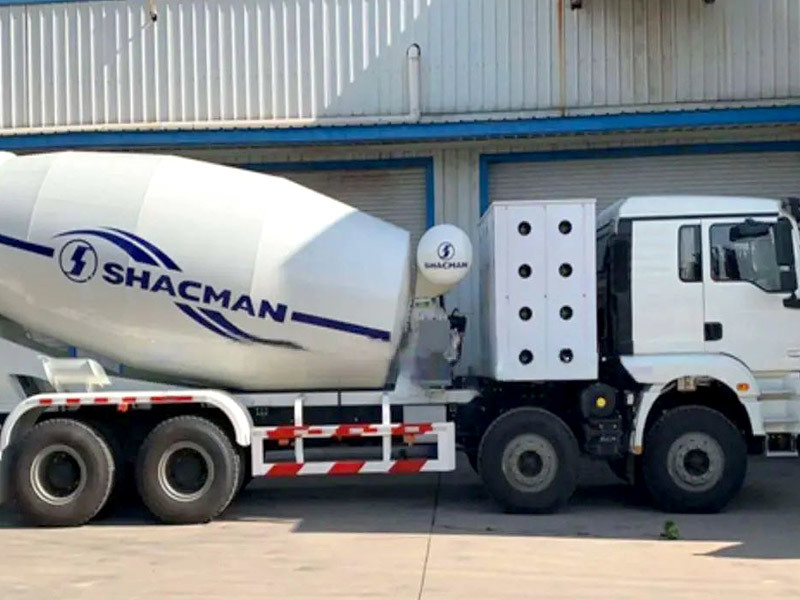

CNG Power Shacman H3000 8x4 Heavy Duty Chassis 14CBM Cement Drum Concrete Mixer Truck
- Commodity name： CNG Power Shacman H3000 8x4 Heavy Duty Chassis 14CBM Cement Drum Concrete Mixer Truck
- Condition： Brand New
- Tyre Quantity： 12 tyre
- Engine Power： 380HP
- Driving Type： 8×4
Keyword:
Product Description
Basic Parameters
Model SX5315GSNJU456
Maximum Speed (kmh) 85
Wheelbase (mm) 1700
Engine WP12NG380E40
Horsepower 380hp
INTRODUCTION
Adopting the narrow body cab of the German MAN TGS model, it has the leading design technology and manufacturing technology of Europe, with better lateral adaptability and traffic ability.
Shacman H3000 series is great for medium to long distance transportation in and around an urban environment.
Product features
Long lasting: Wuhan steel, Baoshan steel material, different thickness for different parts,wear rib on blades. Service life is 1.5 times than average.
Unique structure: Revised logarithmic spiral blades, Special mold cold press molding, to ensure speed of concrete in and out, ensure the uniformity of the concrete.
Well-equipped:CNC cutting equipment, Automation Welding System, fixtures, Automatic robot welding production line (on trial), to ensure quality.
Patent technology: blade curve, antitorque secondary beam, tank heating equipment etc;
High-level configuration: imported hydraulic system
from Germany, Italy, America.
Parameter
| Transport type | Shacman H3000 Heavy haul transportation |
| Logistics type | Bulk cement |
| Distance(km) | ≤300 |
| Road type | Paved raod |
| Drive | 8×4 |
| Max weight(t) | ≤50 |
| Crusing speed/Max speed(km/h) | 85 |
| Loaded speed(km/h) | 45~60 |
| Vehicle model | SX5315GSNJU456 |
| Engine | WP12NG380E40 |
| Emission standard | Euro Ⅳ |
| Displacement | 11.596L |
| Rated output | 294kW |
| Max.torque | 1800N·m |
| Transmission | 12JSD200T-B+QH70 |
| Clutch | 430 |
| Frame | 850×300(8+7) |
| Front axle | MAN 9.5T |
| Rear axle | 16T MAN double reduction 5.262 |
| Tire | 12.00R20 |
| Front Suspension | Multi leaf springs |
| Rear Suspension | Multi leaf springs |
| Fuel | Compressed natural gas |
| Capacity of the fuel tank | CNG |
| Battery | 165Ah |
| Dimensions(L×W×H) | 10800×2490×3300 |
| Volume(m³) | 12-18 |
| Wheelbase | 1800+4575+1400 |
| Approach/Departure angle(°) | 20/12 |
| Max.gradeability(%) | 27 |
| Cab | Type | SHACMAN H3000, lengthened flat roof | |||
| Equipments | ◆Rear window ◆Manual sunroof ◆Hydraulic driver seat with seatbelts ◆Hydraulic suspension of cab ◆Electronic air conditioning with temperature control ◆Electric window ◆Radio with MP3 player |
||||
| Optional | ●Air cushioned drivers seat ●Full vehicle WABCO valve |
||||

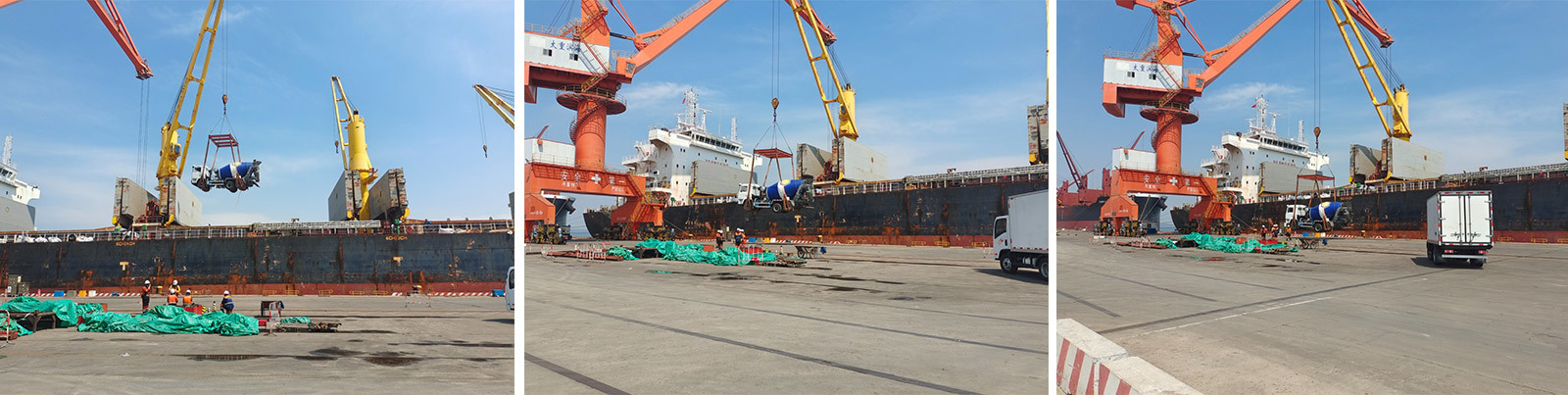

Packaging And Delivery
