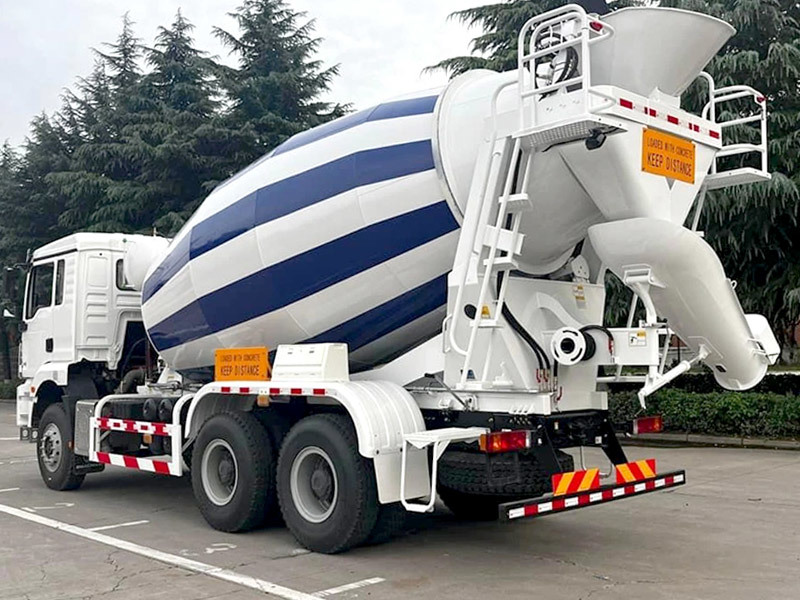

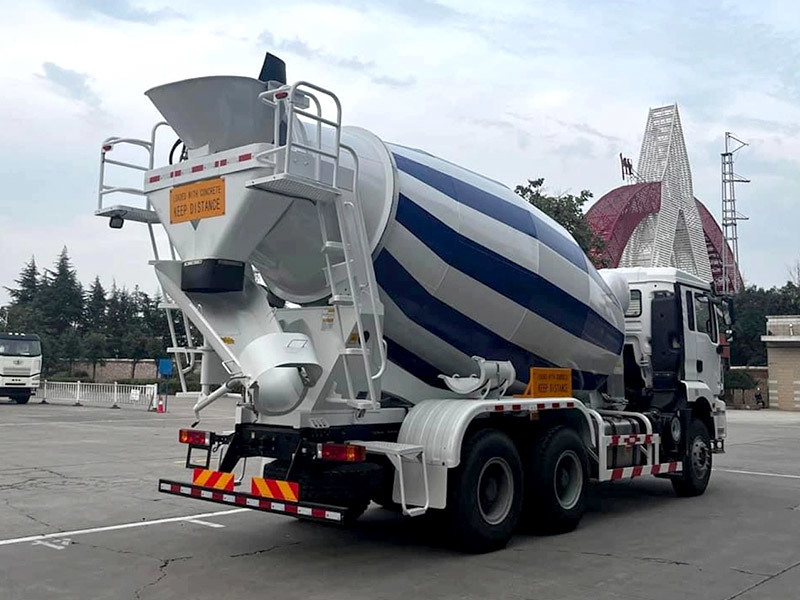

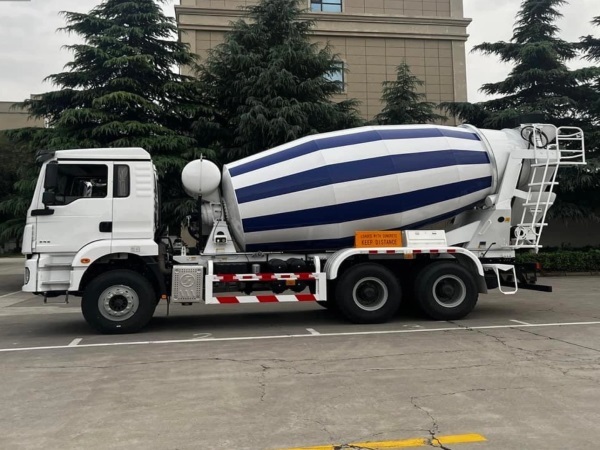

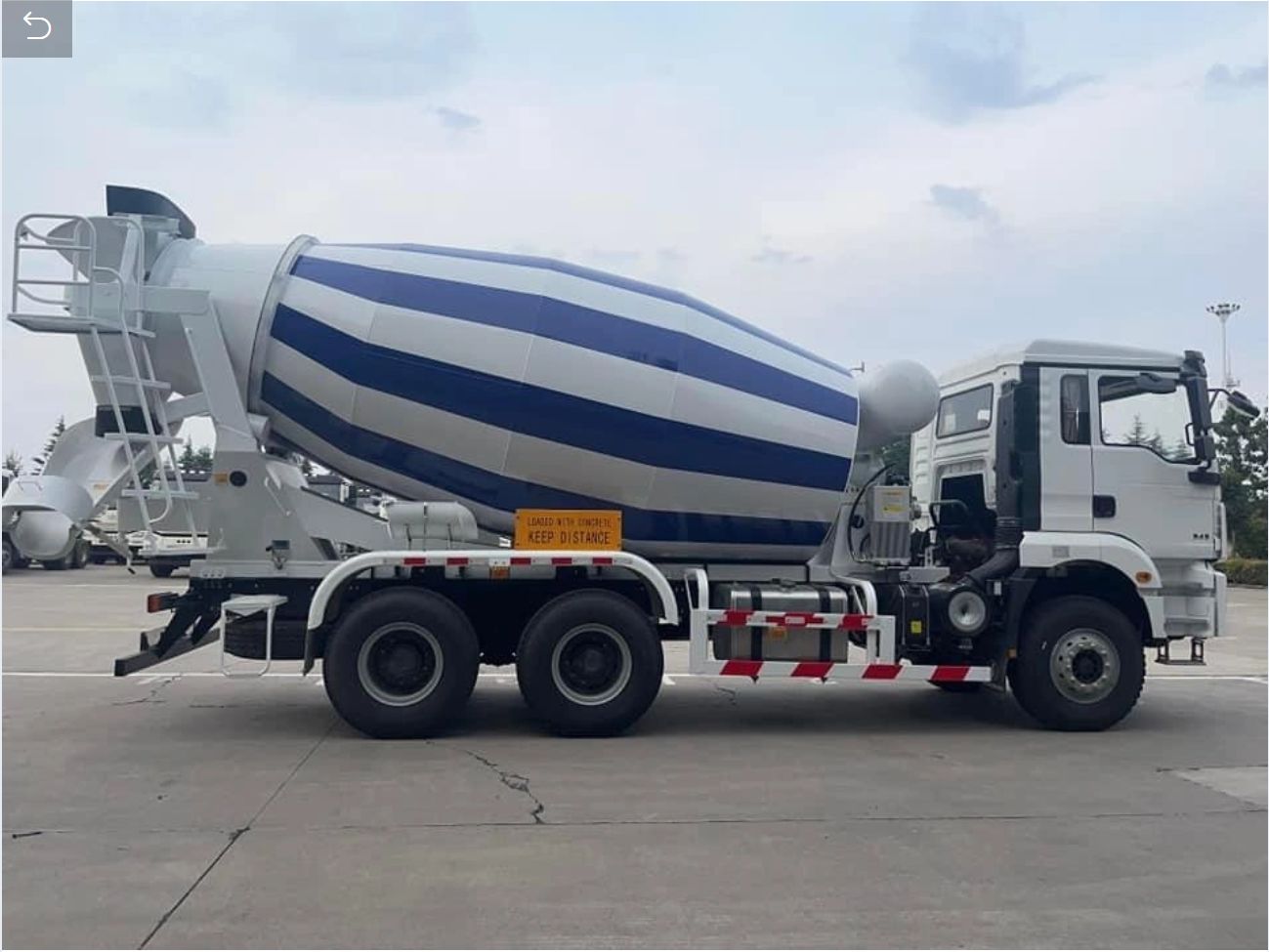

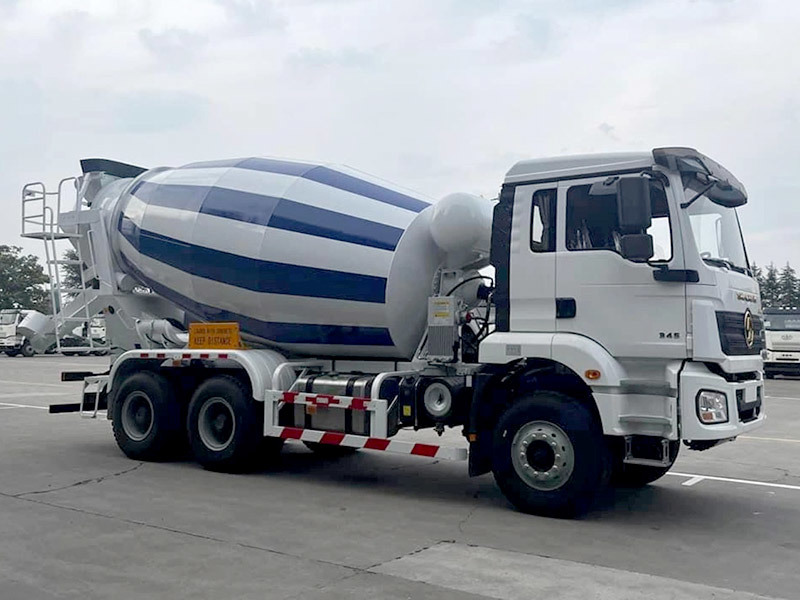

Shacman H3000 High Performance and High Efficiency 10 Cubic Meter Concrete Mixer Truck
- Commodity name： Shacman H3000 High Performance and High Efficiency 10 Cubic Meter Concrete Mixer Truck
- Condition： Brand New
- Tyre Quantity： 10 tyre
- Driving Type： 6×4
Keyword:
Product Description
Basic Parameters
Model SX5255GJBHR384
Maximum Speed (kmh) 85
Wheelbase (mm) 1700
Engine WP12.400E201+PTO Euro Ⅱ
Horsepower 400hp
INTRODUCTION
Adopting the narrow body cab of the German MAN TGS model, it has the leading design technology and manufacturing technology of Europe, with better lateral adaptability and traffic ability.
Shacman H3000 series is great for medium to long distance transportation in and around an urban environment.
Product features
Long lasting: Wuhan steel, Baoshan steel material, different thickness for different parts,wear rib on blades. Service life is 1.5 times than average.
Unique structure: Revised logarithmic spiral blades, Special mold cold press molding, to ensure speed of concrete in and out, ensure the uniformity of the concrete.
Well-equipped:CNC cutting equipment, Automation Welding System, fixtures, Automatic robot welding production line (on trial), to ensure quality.
Patent technology: blade curve, antitorque secondary beam, tank heating equipment etc;
High-level configuration: imported hydraulic system
from Germany, Italy, America.
Parameter
| Platform | Shacman H3000 | |
| Drive type | 6x4 | |
| Vehicle model | SX5255GJBHR384 | |
| Vehicle Weight | GVW：15 tons | |
| GCW：35 tons | ||
| Frame | 850x300(8+7) | |
| Engine | Weichai | Emissions: Euro II to Euro V |
| Displacement: 10L – 12L | ||
| Power: 300 PS – 420 PS | ||
| Torque: 1200 Nm – 2100 Nm | ||
| Cummins | Emissions: Euro II to Euro V | |
| Displacement: 10L – 12L | ||
| Power: 340 PS – 420 PS | ||
| Torque: 1200 Nm – 2100 Nm | ||
| Transmission | RTD11509C | |
| Clutch | φ430 | |
| Steering gear | ZF8098 | |
| Axle | Front axle: MAN 9.5 ton | |
| Rear axle: MAN 16 ton single or double reduction | ||
| Gear ratio: 4.769 – 5.92 | ||
| Suspension | Multi leaf spring front and rear setup | |
| Tires | 315 / 80R22.5 | |
| 12R22.5 | ||
| 12.00R20 | ||
| Fuel tank | 400 - 700 liter aluminum or steel tank | |
| Dimensions(LxWxH) | 8575x2495x3774 | |
| Volume(m³) | 9 | |
| Wheelbase | 3775+1400 | |
| Approach/Departure angle(°) | 20/18 | |
| Max.gradeability(%) | 34 | |
| Cab | Type | Shacman H3000, lengthened flat roof |
| Equipments | ◆Rear window ◆Manual sunroof ◆Hydraulic driver seat with seatbelts ◆Hydraulic suspension of cab ◆Automated air conditioning ◆Electric window ◆Radio with MP3 piayer |
|
| Optional | ●Air cushioned drivers seate ●Full vehicle WABCO valve ●Central locking |
|
