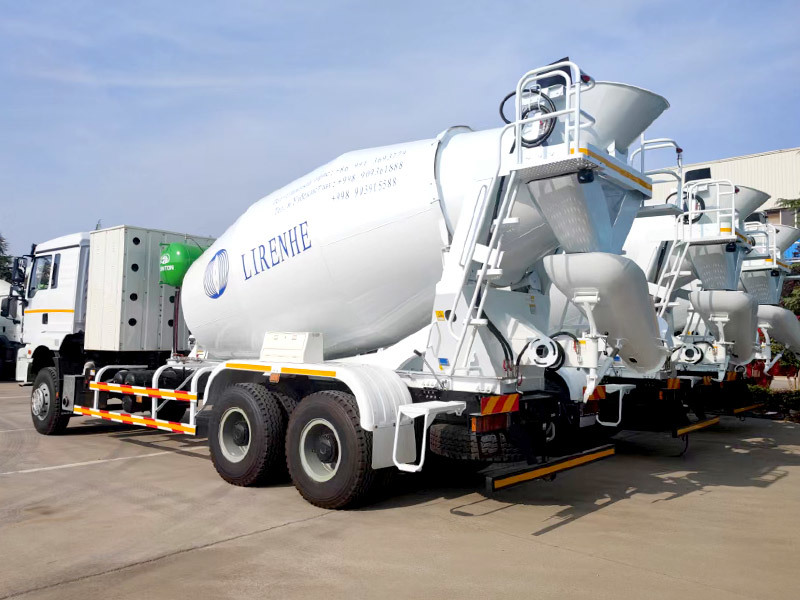

Brand New Shacman H3000 6x4 10wheels CNG Engine Concrete Agitator Concrete Mixer Truck
- Commodity name： Brand New Shacman H3000 6x4 10wheels CNG Engine Concrete Agitator Concrete Mixer Truck
- Condition： Brand New
- Tyre Quantity： 10 tyre
- Engine Power： 380HP
- Driving Type： 6×4
Keyword:
Product Description
Basic Parameters
Model SX4256NT384TL
Maximum Speed (kmh) 85
Wheelbase (mm) 1700
Engine WP12NG380E40
Horsepower 380hp
INTRODUCTION
Adopting the narrow body cab of the German MAN TGS model, it has the leading design technology and manufacturing technology of Europe, with better lateral adaptability and traffic ability.
Shacman H3000 series is great for medium to long distance transportation in and around an urban environment.
Product features
Long lasting: Wuhan steel, Baoshan steel material, different thickness for different parts,wear rib on blades. Service life is 1.5 times than average.
Unique structure: Revised logarithmic spiral blades, Special mold cold press molding, to ensure speed of concrete in and out, ensure the uniformity of the concrete.
Well-equipped:CNC cutting equipment, Automation Welding System, fixtures, Automatic robot welding production line (on trial), to ensure quality.
Patent technology: blade curve, antitorque secondary beam, tank heating equipment etc;
High-level configuration: imported hydraulic system
from Germany, Italy, America.
Parameter
| Type |
Shacman H3000 |
| Edition | Enhanced version |
| Vehicle model | SX4256NT384TL |
| Drive | 6×4 |
| Wheelbase (mm) | 3800+1350mm |
| Suspension | Multi leaf springs |
| Engine | WP12NG380E40 |
| Horsepower | 380HP |
| Emission standard | Euro Ⅳ |
| Displacement | / |
| Rated output | / |
| Max.torque | / |
| Transmission | 9JSD150A |
| Clutch | 430 |
| Frame | 850×300（8+7） |
| Front axle | MAN 9.5T |
| Rear axle | MAN 16T double reduction5.262 |
| Tire | 12.00R20 |
| Fuel | Compressed natural gas |
| Fuel tank | 360L （Aluminum shell） |
| Battery | 165Ah |
| Dimensions(L×W×H) | 7475x2490x3730 |
| Cab | ◆Shacman H3000 extended flat-top cab without top side deflector ◆Hydraulic main seat ◆Four-point hydraulic suspension ◆Single refrigeration air conditioner ◆Electric window shaker ◆Water tank protection grille ◆Taillight protection grille |
| Optional | / |
