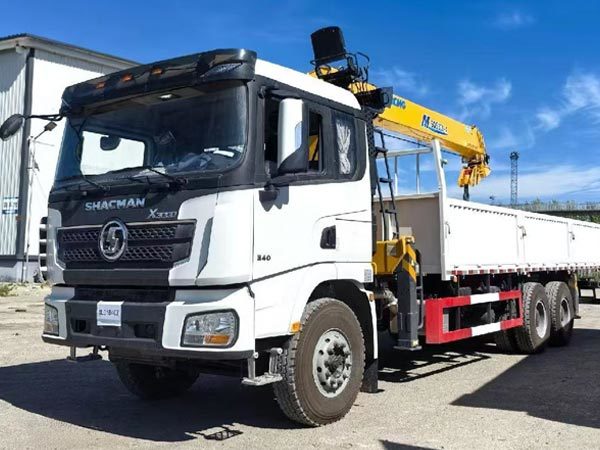

Shacman X3000 Crane Cargo Truck 6x4 340hp Grapple Saw Truck EuroII
- Commodity name： Shacman X3000 Crane Cargo Truck 6x4 340hp Grapple Saw Truck EuroII
- Condition： Brand New
- Tyre Quantity： 10 tyre
- Engine Power： 340HP
- Driving Type： 6×4
- Loading Capacity： 30 tons
Keyword:
Product Description
Shacman X3000 mounted crane truck has a stylish and dynamic appearance design, the front face adopts a family-style network configuration, the tail design has a degree of retracting, showing an enterprising and not proud of the noble character. The waist line runs through the whole car, and the wheels are specially designed to perfectly integrate with the body modeling .
Power and handling
Power system : The car is equipped with a 9.5L displacement Weichai 6-cylinder diesel in-line engine, which can burst out 340 horsepower, the maximum torque is 2400N·m, and the top speed can reach 108 km/h. This power configuration makes the Shacman X3000 very competitive in the heavy duty truck .
Speed change system : equipped with fast manual transmission, with 12 gears, stable speed change performance, linear throttle output, positive response, rapid speed 1.
Maneuverability : Although the vehicle weighs 12.1 tons, but the steering feel is light, the rotation amplitude is in line with expectations, even female drivers can easily control. At high speeds, vehicles give the impression of stability 1.
Loading capacity
The body size of Shacman X3000 on-board crane truck is 12000×2550×4000 mm, the wheelbase is 1800+4575+1400 mm, the total traction mass reaches 31 tons, and the loading capacity is excellent . There is also an 8x8 all-wheel drive version of the X3000 tractor with a maximum designed towing mass of up to 250 tonnes, suitable for heavy transport .
Comfort and configuration
Comfort : Shacman X3000 has a high demand for comfort, a long wheelbase and spacious interior space. The air conditioning design conforms to the principle of human body heat, and the noise reduction performance is excellent. The seat adopts Grammer air seat, which can be adjusted in multiple directions, with high material softness and strong anti-friction ability. The rear berth is 900mm wide, soft and comfortable .
Configuration : Center console layout is orderly, function keys are centralized and easy to operate. Equipped with central control screen with multimedia navigation system, cruise control, central control door lock, power Windows, rearview mirror electric heating and other configurations. For different regions users are also equipped with automatic constant temperature air conditioning .
| Transport type | Truck mounted crane Shacman X3000 |
| Logistics type | Daily industrial products and food |
| Distance(km) | ≤300km |
| Road type | Paved roads |
| Drive | 6×4 |
| Max weight(t) | ≤35 |
| Crusing speed/Max speed(km/h) | 90 |
| Loaded speed(km/h) | 50~65 |
| Vehicle model | SX12555R434 |
| Engine | WP10.340E22 |
| Emission standard | Euro Ⅱ |
| Displacement | 9.726L |
| Rated output | 250kW |
| Max.torque | 1400N·m |
| Transmission | 10JSD180 |
| Clutch | 430 |
| Frame | 850×300(8+5 ) |
| Front axle | MAN 7.5T |
| Rear axle | 13T MAN double reduction 4.769 |
| Tire | 12.00R20 |
| Front Suspension | Multi leaf springs |
| Rear Suspension | Multi leaf springs |
| Fuel | Diesel |
| Capacity of the fuel tank | 400L( Aluminum shell ) |
| Battery | 180Ah |
| Dimensions(L×W×H) | 9700×2490×3250 |
| Trunk(L×W×H) | 7500×2300×800 |
| Wheelbase | 4375+1400 |
| After the suspension | 2400 |
| Approach/Departure angle(°) | 18/12 |
| Max.gradeability(%) | 34 |
| Cab | Type | SHACMAN X3000 , mid-lengthened flat roof | ||
| Equipments | ◆Rear window ◆Manual sunroof ◆Hydraulic driver seat with seatbelts ◆Hydraulic suspension of cab ◆Electronic air conditioning with temperature control ◆Electric window ◆Radio with MP3 player |
|||
| Optional | ●Central locking ●Air suspended main seat ●Front lamp protector ●Four point air suspended cabin ●Desert air filer ●Oil type air filer ●Electric cab turning ●11.00R20 |
|||
