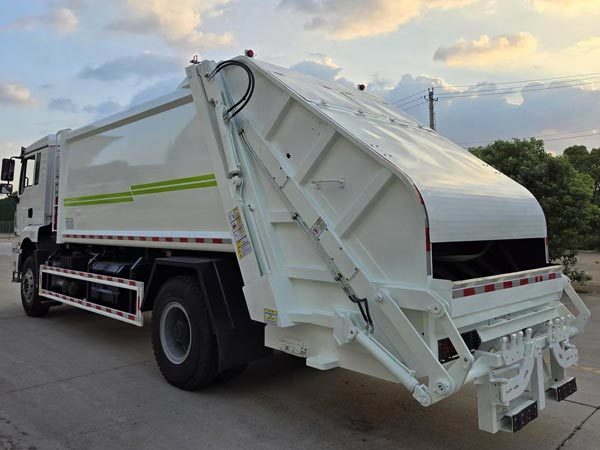

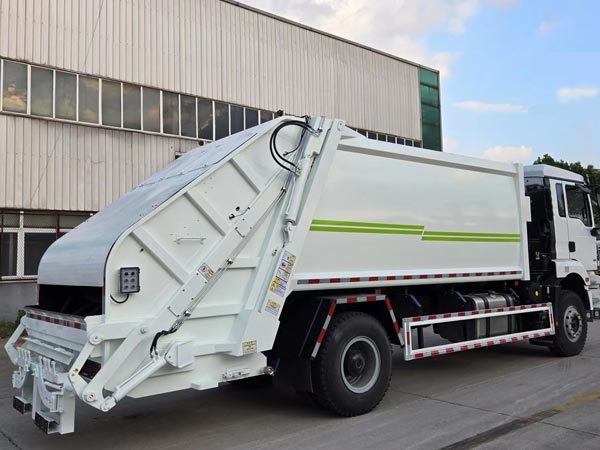

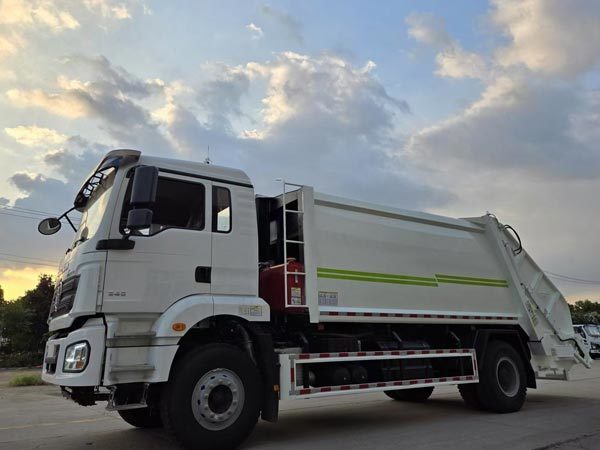

Shacman H3000 Compression Garbage Truck 4x2 Garbage 340Hp Euro II
- Commodity name： Shacman H3000 Compression Garbage Truck 4x2 Garbage 340Hp Euro II
- Condition： Brand New
- Tyre Quantity： 6 tyre
- Engine Power： 340HP
- Driving Type： 4×2
- Loading Capacity： 20 tons
Keyword:
Product Description
Shacman H3000 garbage compressor is combination of domestic and foreign advanced technology, specially designed for environmental sanitation operations of the vehicle.
1. Technical and design features
Advanced and applicability: Shacman H3000 garbage compressor truck has absorbed the advantages and characteristics of garbage trucks in developed countries, and combined with the specific needs of domestic compression garbage trucks for research and development, advanced design, reasonable structure, beautiful appearance, safe and reliable .

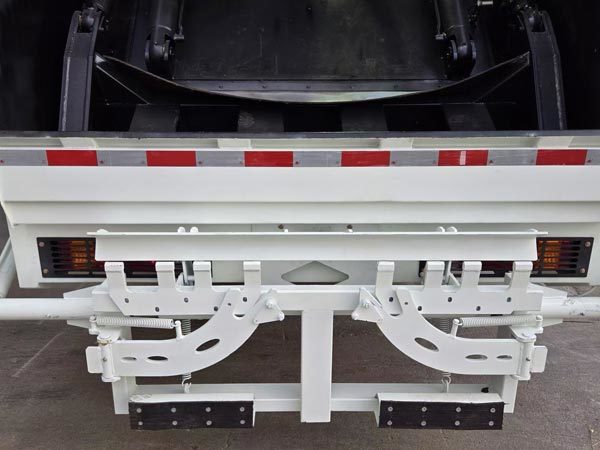

Hydraulic turning mechanism: the car is equipped with a variety of industry-leading hydraulic turning mechanism, which can match with a variety of front-end collection modes and adapt to different collection methods of the front-end in different regions .
Leachate collection and drainage system: to meet the needs of non-leakage compression collection and transportation of domestic high water cut garbage, improve the environmental protection of the operation .
Dual power drive system: energy saving and environmental protection requirements for fixed point pressing in garbage concentration area .
2. Performance and configuration
Power system: According to some information mentioned, Shacman H3000 series garbage trucks may be equipped with powerful engines, such as a model of the chassis engine power of Cummins 345 horsepower .
Compression and loading capacity: the car has a large volume filler, a single filling capacity, efficient and economical. At the same time, the tooth plate structure is convenient to enhance the extrusion strength of waste and fast feeding, and the working efficiency is higher .
Sealing and environmental protection: the rear side cover sealing device meets the vehicle sealing requirements and aesthetic requirements, and is equipped with a variety of sealing measures, such as hydraulic automatic locking device, special CR neoprene rubber triple seal strip, etc., to ensure that there is no sewage spill and eliminate secondary pollution .
3. Control and safety
Hydraulic and PLC double control operating system: to meet the different needs of customers, convenient operation .
Safety safeguard measures: The vehicle design is equipped with more than ten safety safeguard measures, such as emergency stop button set on both sides of the vehicle body, front and rear control button interlock system, etc., to ensure operation safety .
4. New energy version
It is worth noting that Shacman H3000 also launched a pure electric compression garbage truck, such as Shacman H3000 pure electric sanitation general chassis model, the model uses Ningde era high-power and high energy density battery, with zero emission, low noise, energy saving and environmental protection advantages. However, regarding whether there is a pure electric version of the H3000, specific information may need to consult the manufacturer directly.
5. Scope of application
Shacman H3000 garbage compressor truck is suitable for the collection, transfer and dumping of urban bagging, barreling and bulk domestic garbage, as well as the fixed-point pressing operation of garbage concentration area.
| Transport type | Refuse compacting truck |
| Logistics type | Municipal refuse |
| Distance(km) | ≤300 |
| Road type | Urban road/Paved roads |
| Drive | 4x2 |
| Max weight(t) | ≤50 |
| Max speed | 90 |
| Loaded speed(km) | 50~70 |
| Vehicle model | SX5315GYYHR456 |
| Engine | WP10.340E22 |
| Emission standard | Euroǁ |
| Displacement | 9.726L |
| Rated output | 250kW |
| Max.torque | 1250N•m |
| Transmission | 10JSD180+QH50 |
| Clutch | 430 |
| Frame | 850x300(8+5) |
| Front axle | MAN 7.5T |
| Rear axle | 13STR double reduction 5.262 |
| Tire | 12.00R20 |
| Front Suspension | Multi leaf springs |
| Rear Suspension | Multi leaf springs |
| Fuel | Diesel |
| Capacity of the fuel tank | 400L ( Aluminum shell ) |
| Battery | 165Ah |
| volume ( m³) | 8 |
| Wheelbase | 1800+4575+1400 |
| Volume ( m³) | 40 |
| Approach/Departure angle(°) | 20/18 |
| Max.gradeability(%) | 34 |
| Cab | Type | SHACMAN H3000, lengthened flat roof | |||||
| Equipments | ◆Rear window ◆Manual sunroof ◆Hydraullc driver seat with seatbelts ◆Hydraulic suspension of cab ◆Automated air conditioning ◆Electric window ◆Radio with MP3 player |
||||||
| Optional | ●Air cushioned drivers seat ●Full vehicle WABCO valve ●Central locking |
||||||
