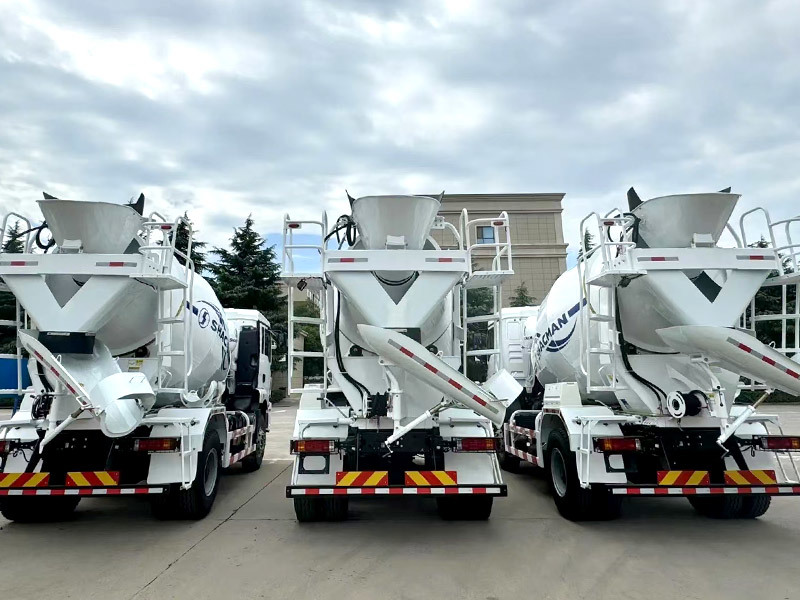

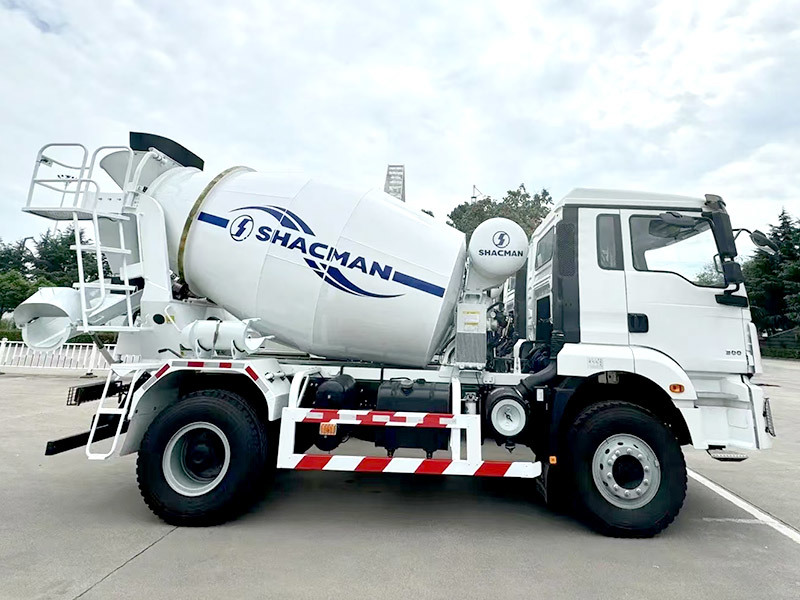

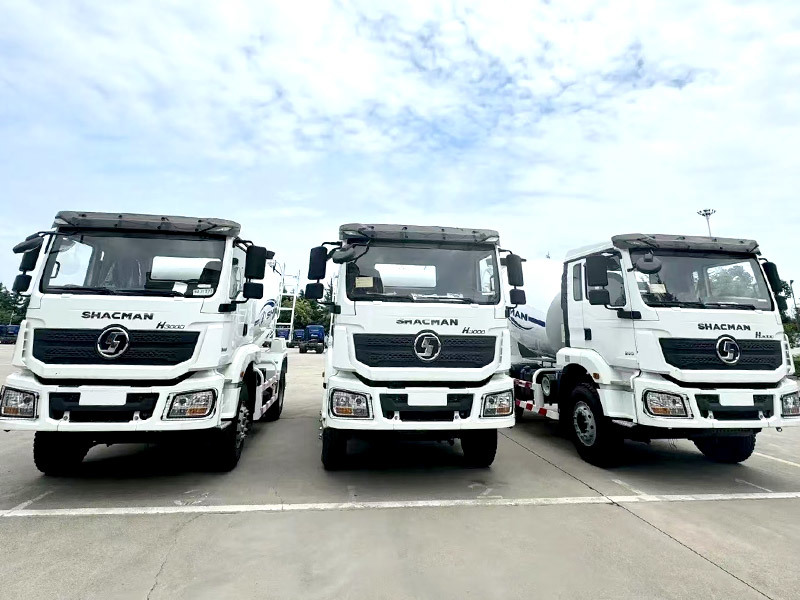

Shacman 5cbm 4x2 H3000 Concrete Mixer Truck
- Commodity name： Shacman 5cbm 4x2 H3000 Concrete Mixer Truck
- Condition： Brand New
- Tyre Quantity： 6 tyre
- Engine Power： 290HP/340HP
- Driving Type： 4×2
Keyword:
Product Description
Shacman H3000 Mixer truck is also known as in-transit mixers. Materials will be mixed and loaded into the mixer drum. It begins mixing at Mixing Station. As it travels to the work site, the mixer keeps rotating to keep the concrete wet. Without the rotation, the concrete will get hard and unusable.
The mixer drum rotates in one direction to pull the material into the drum, known as charging. Once it is time to use the concrete, it will rotate in the opposite direction. All mixer trucks are working within a 90-minute radius from the plant.
Shacman vehicle series boasts many new innovations to increase performance, efficiency and comfort.
Parameter
| Transport type | Shacman H3000 Mixer transportation | ||
| Logistics type | Concrete | Bulk cement | |
| Distance(km) | ≤50 | ≤300 | |
| Road type | Paved roads | ||
| Drive | 6X4 | ||
| Max weight(t) | ≤50 | ≤70 | |
| Load/Volume | ≤9-10 | ≤25 | |
| Max speed(km/h) | 40~55/80 | 40~55/80 | |
| Loaded speed(km/h) | 30~65 | 30~65 | |
| Vehicle model | SX5255GJBJT384 | SX5255GSNJM434 | |
| Engine | WP10.340E32 | WP10.290E32 | |
| Emission standard | Euro II | Euro II | |
| Displacement | 9.7L | 9.7L | |
| Rated Output | 250kw | 213kw | |
| Max. torque | 1350N.m | 1160N.m | |
| Transmission | 9JS135 | 9JS119+QH50 | |
| Clutch | 430 | ||
| Frame | 850X300(8+7) | 850X300(8+5) | |
| Front axle | MAN 7.5T | ||
| Rear axle | 16T STR double reduction5.262 | ||
| Tire | 12.00R20 | 12.00R20 | |
| Front Suspension | Multi leaf springs | Multi leaf springs | |
| Rear Suspension | Multi leaf springs | Multi leaf springs | |
| Fuel | Diesel | ||
| Capacity of the fuel tank | 380L | 400L | |
| Load/Volume | 6m³ | 8m³ | |
| Approach/Departure angle( °) | 20/18 | 20/18 | |
| Max.grade ability(%) | 34 | 27 | |
| Cab | Type | ♦ Ring curtain ♦ Real window ♦ Manual sunroof ♦ Hydraulic shock absorber seat ♦ Fixed passenger seat ♦ Four point air suspension ♦ Seat sleeping bed ♦ Manual flip |
|
| Optional | ♦ Chinese made clutch ♦ Central locking |
||
