8x4 Shacman Heavy Dump Truck F3000 50ton 375hp 12 Wheels Dump Truck
- Commodity name： 8x4 Shacman Heavy Dump Truck F3000 50ton 375hp 12 Wheels Dump Truck
- Condition： Brand New
- Tyre Quantity： 12 tyre
- Engine Power： 375HP/420HP
- Driving Type： 8X4 LHD/RHD
- Loading Capacity： 50 tons
Keyword:
Product Description
Shacman F3000 Series 8x4 Construction Dump Truck is a kind of special hopper that can be tipped over for short distance conveying materials. It is designed and produced according to the standard, and all the indexes of this product meet the standard. It is equipped with hydraulic brake, which is smooth, safe and reliable and improves the mechanical efficiency. It adopts gravity unloading and bumping block type mechanical return bucket, which is easy to operate. Also, this truck has low fuel consumption, improves the efficiency of power transmission and is easy to maintain.
Product feature and application
Shacman F3000 8x4 Construction Dump Truck does not require much for the road surface and condition, and can be used in narrow sites and poor road conditions. It is suitable for short-distance transportation of various bulk materials such as concrete, gravel, earth, coal, ore, fertilizer, etc., in construction, water conservancy, road construction, factories and rural areas. Dump trucks are normally composed of car chassis, hydraulic lifting mechanism, cargo compartment and power take-off device and other components. The carriage of dump truck is divided into two kinds of rearward tipping and lateral tipping, and rearward tipping is more common, and you can just push the piston rod to make the carriage tipping.
Product details
● The taillight is equipped with a protector to improve the adaptability of complex working conditions, which reduced the risk of the taillight from being damaged.
● Three-layer beam for 8×4 dump truck, the bearing capacity is greatly improved and the bending strength is high.
● The use of flat tank and optimal placement further improves the ground clearance with better trafficability.
● A variety of lifting cylinders are available (domestic, DeppKaler, Hyva), lifting capacity up to 100T, lifting time between 14-45 seconds. The front lifting mechanism has the advantages of high efficiency, simple structure, great lifting stability and large lifting capacity.
Parameter
| Transport type | Highway transport | |
| Logistics type | Ore / sand / gravel / coal | |
| Distance(km) | ≤200 | |
| Road type | Offroad/Paved roads | |
| Drive | 8×4 | 8×4 |
| Max weight(t) | ≤70 | ≤90 |
| Max speed(km/h) | 80 | 80 |
| Loaded speed(km) | 45~60 | 45~60 |
| Vehicle model | SX3315DT366 | SX3315DV366C |
| Engine | WP12.375N | ISME420 30 |
| Emission standard | Euro Ⅲ | Euro Ⅲ |
| Displacement | 11.596L | 10.8L |
| Rated output | 276kW | 306kw |
| Max.torque | 1800N-m | 2010N·m |
| Transmission | I0JSD180+QH50 | 12JSD200T-B+QH50 |
| Clutch | 430 | 430 |
| Frame | 850×300( 8+7 ) | 850×320(8+7+8) |
| Front axle | MAN 9.5T | MAN 9.5T |
| Rear axle | 16T MAN double reduction 4.769 | 16T MAN double reduction 4.769 |
| Tire | 12.00R20 | 12.00R20 |
| Front Suspension | Multi leaf springs | Multi leaf springs |
| Rear Suspension | Multi leaf springs | Multi leaf springs |
| Fuel | Diesel | Diesel |
| Capacity of the fuel tank | 400L | 400L |
| Battery | 165Ah | 180Ah |
| Dimensions(L×W×H) | 9300×2490×3250 | 9300×2490×3250 |
| Trunk(LxWxH) | 7400×2300×1500 | 7400×2300×1500 |
| Wheelbase | 1800+3575+1400 | 1800+3575+1400 |
| Approach/Departure angle(°) | 23/44 | 23/44 |
| Max.gradeability(%) | 40 | 40 |
| Cab | Type | SHACMAN F3000 , mid-lengthened flat roof | ||
| Equipments | ◆Rear window ◆Mechanical clerestory ◆Hydraulic suspension of cab ◆Hydraulic driver seat with seatbelts ◆One sleeping bed ◆Hydraulic reversal ◆Radio with MP3 player |
|||
| Optional | ●Air cushioned drivers seat ●Front lamp protection grid ●Oil bath air filter |
|||
Packing And Delivery

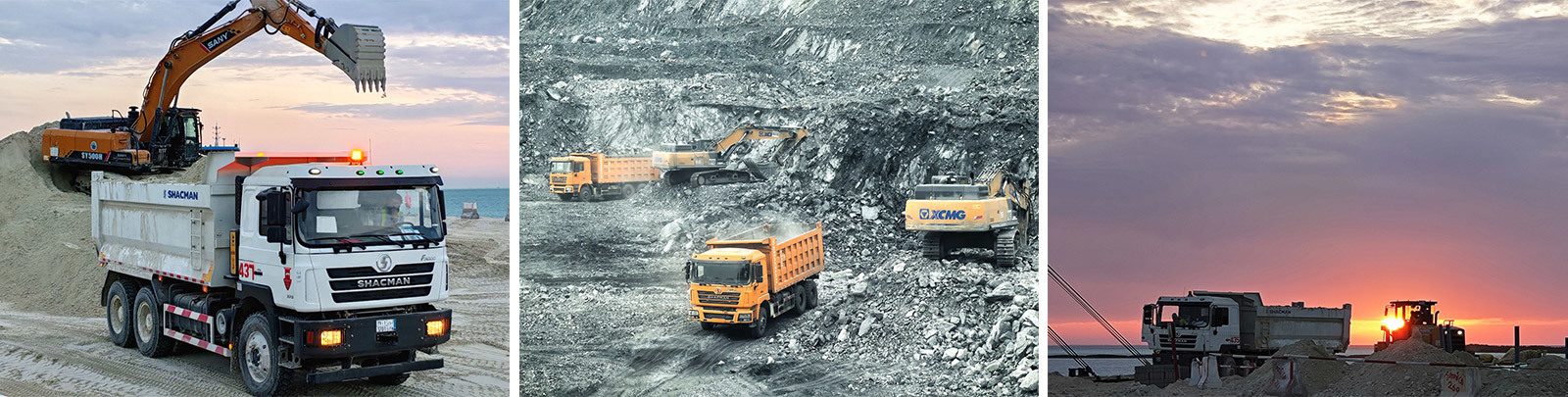

Overseas Use
