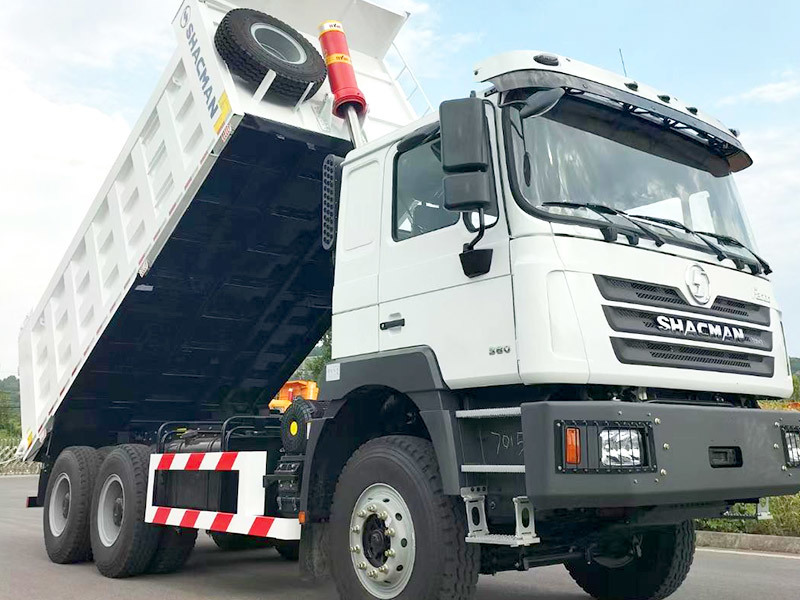

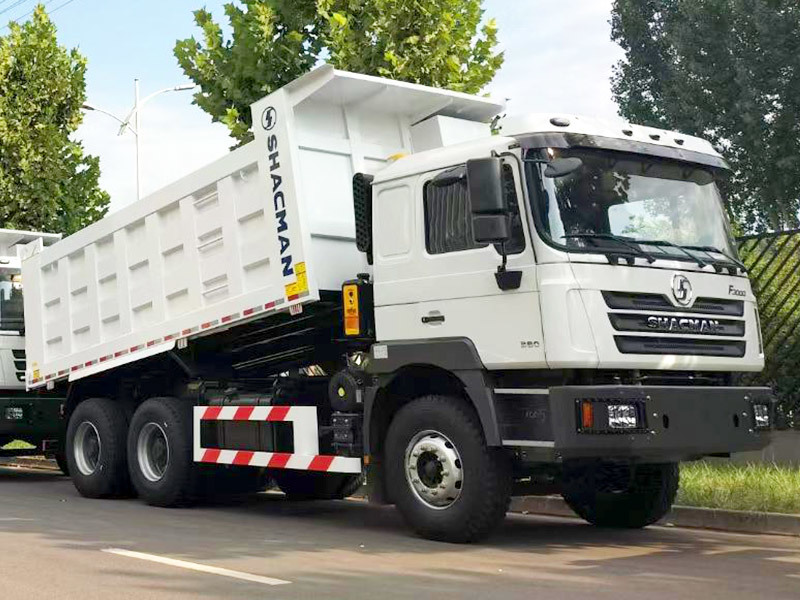

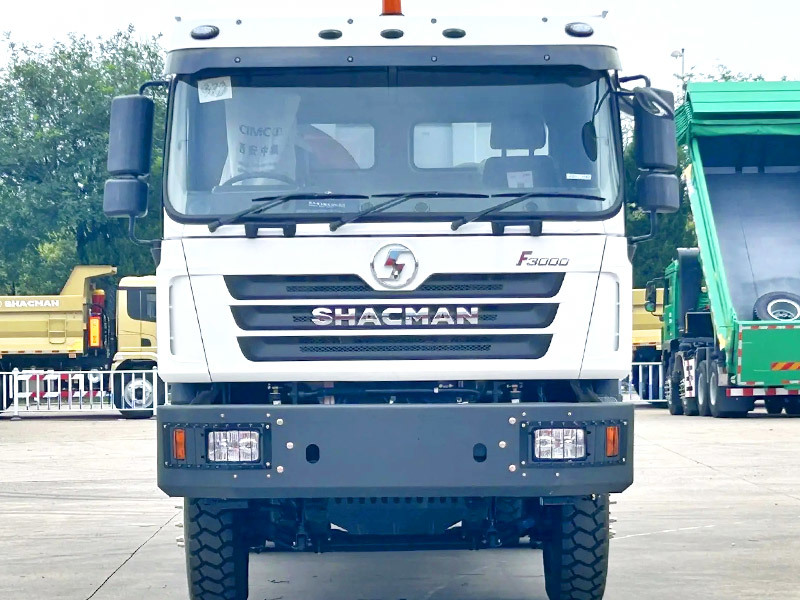

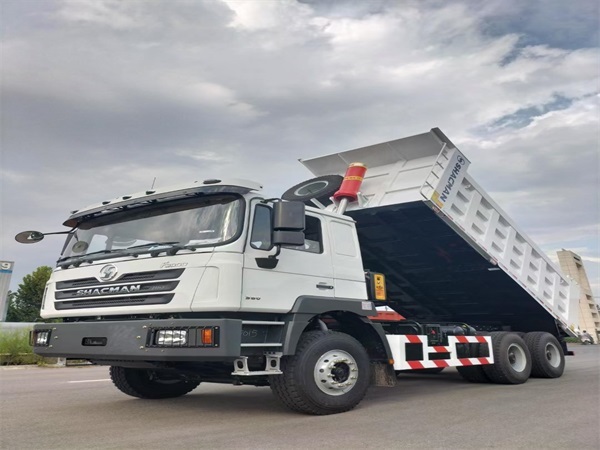

Shacman F3000 380HP Dump Truck New Truck with Cheap Price and Good Quality
- Commodity name： Shacman F3000 380HP Dump Truck New Truck with Cheap Price and Good Quality
- Condition： Brand New
- Tyre Quantity： 10 tyre
- Engine Power： 380HP
- Driving Type： 6X4 LHD/RHD
- Loading Capacity： 35 tons
Keyword:
Product Description
Shacman F3000 6x4 Construction Dump Truck is able to traverse nearly all type of terrain without any problems, and it often works at mining and off-road construction sites. It features high transmission torque due to its Ф430mm large friction clutch. It is generally used for short distance specific route operation, and the carrying capacity is its absolute advantage. It is a truck that is equipped with a hydraulic lifting mechanism that can lift the cargo box for automatic unloading.
In most construction sites, materials such as gravel, sand and fill dirt must be brought in, while waste materials such as old bricks and excavated dirt must be taken away. Much of this work is performed by specialized vehicles called dump trucks. It is suitable for short-distance transportation of various bulk materials such as concrete, gravel, earth, ore, etc., in construction, water conservancy, road building, mining, etc. Shacman F3000 6x4 Construction Dump Truck has strong power and usually has mechanical return bucket function.
Product feature and application
Shacman F3000 6x4 Construction Dump Truck achieves great rigidity in structure and strong bearing capacity by reinforcing its multi-leaf spring and four U-bolts. It has sufficient power, large cargo volume, able to carry more goods, climbing favorably, fast driving speed, able to improve the real needs of transport efficiency. This dump truck has become the main means of transportation for site construction and production due to the advantages of good mobility, fast turnover and large load capacity. Also, equipped with a protector, this truck obtains better capability to tackle complicated working conditions.
Product details
● Weichai WEVB exhaust brake system reduces the wear of tires, brake pads and the cost of vehicle use while ensuring safety.
● Wheel rim has been reinforced, whose thickness increased from 14mm to 16mm and steel ring from 8.5 to 9.0.
● Φ120 bore steering gear, the steering assist capacity is increased by 24%
● The ground clearance is increased up to 636mm, and the thickness of the bottom protector is increased from 3mm to 6mm, which can meet the requirements of customers.
Parameter
| Model | SX3255DT384R | |
| Drive type | 6*4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3975+1400 |
| Performance | Maximum speed/(km/h) | 42～52/66 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP10.380E22 | |
| Power/(kw/HP) | 279kw / 380Hp | |
| Maximum torque /(N.m)/rpm | 1600 N·m | |
| Displacement/(L) | 9.726 L | |
| Emission standard/ | Euro/ II | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminium tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Inner dimension of loading space(mm) | 5800x2300x1500 | |
| Material thickness of loading(mm) | Bottom8,Side6 | |
| Lifting mode | Multistage front lifting hydraulic system | |
| Cab | Type | SHACMAN F3000 Medium-length flat roof cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, common rearview mirror, electric automatic thermostatic air conditioner, electric window shaker, manual flip, common air filter, metal bumper, two-stage pedal, water tank protection grill, 165Ah maintenance-free battery, SHACMAN logo, full English logo | |
