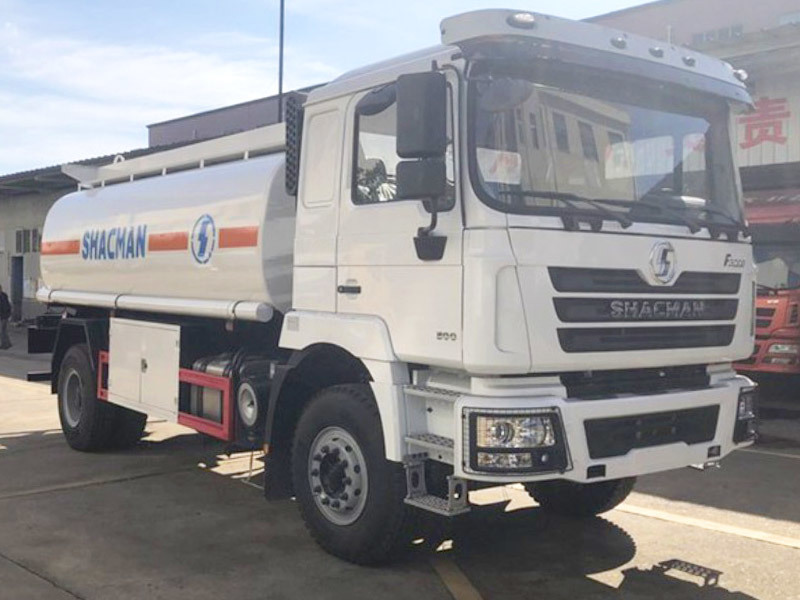

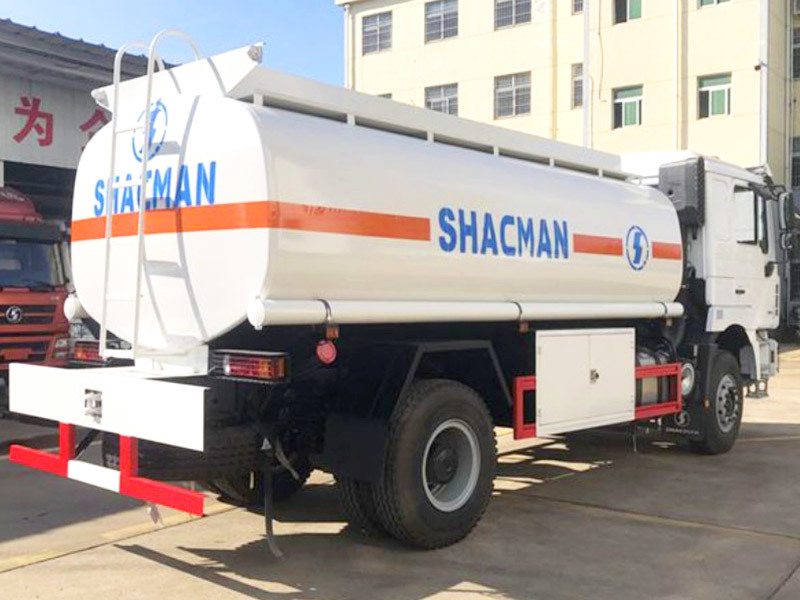

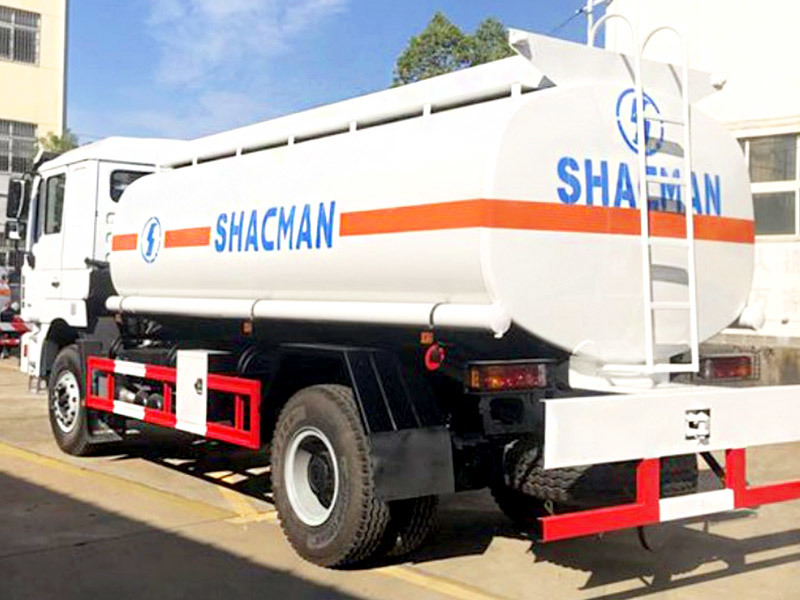

Shacman F3000 4×2 300HP 12000L Fuel Tank Truck for Sale
- Commodity name： Shacman F3000 4×2 300HP 12000L Fuel Tank Truck for Sale
- Condition： Brand New
- Tyre Quantity： 6 tyre
- Engine Power： 300HP
- Driving Type： 4×2
Keyword:
Product Description
Model: SX5255GJBJR384, SX5258GJBJT384C
Maximum speed (km/h): 85, 70
Wheelbase (mm): 3775+1400
Engine: WP10.340E22+PTO Euro II, ISM11E5 385+PTO Euro V
Horsepower: 340hp, 380hp
EXTERIOR
The cab is combined from the world's top ABB and KUKA automatic welding robot, of which the welding accuracy is higher and the solder joint distribution is more even. The vehicle features greater impact resistance and increased occupant safety.
Advanced noise isolation technology and strengthened vehicle body structure, and the application of polyester material can reduce cab noise greatly and increase insulation qualities.
The front face of the cab adopts the European low wind resistance V-SHAPE design.The whole vehicle passes CED flow field analysis and wind tunnel tests, and the wind resistance is reduced greatly.
INTERIOR
American VISTEON interior utilizing 100% natural negative on fiber fabric. New material sleeper can promote rest quality.
Adjustable steering wheel, which is easy to operate with great man-machine performance.
Installation of high strength anti-collision steel beam on the inside of vehicle door increases vehicle safety.
Integrated structure floor mat is equipped with protective strips,great insulation, easy to clean and have good noise reduction properties.
Four point air suspension and transverse damping shock absorb er can improve the drive comfort and ease discomfort caused by road conditions.
FEATURES
VOSS connectors have greatly improved reliability, and the vehicle has better air tightness and better pressure holding capacity.
The cooling system is equipped with symmetrical left and right air chambers with advantages of shorter inter cooler inlet pipe, reduced pipe drag resistance, tight piping layout and higher ground clearance.
Ф430mm large friction clutch provides high transmission torque and efficiency.
Weichai WEVB exhaust brake system reduces the wear of tires, brake pads and the cost of vehicle use while ensuring safety.
Reinforced multi-leaf spring and four U-bolts with great rigidity and strong bearing capacity.
Wheel rim has been reinforced, whose thickness increased from 14mm to 16mm and steel ring from 8.5 to 9.0.
Ф120 bore steering gear, the steering assist capacity is increased by 24%.
Parameter
| Vehicle Model | XZL5189GJYS6 |
| Chassis brand | Shacman |
| Drive Type | 4X2, LHD(option RHD) |
| Wheelbase | 4700 mm |
| Overall Dimension | 8450X2500X3250mm |
| Gross Weight | 18000 kg |
| Curb Weight | 9870 kg |
| Payload Weight | 7800 kg |
| Engine Model | WP10.300E22 |
| Engine Make | Weichai Power |
| Rated Power | 300HP |
| Displacement | 6200 ml |
| Type | Diesel engine, in-line, 6 cylinders, turbocharged water-cool |
| Gearbox | Manual, 6 speed forward, 2 reverse |
| Tire | 11.00R20 |
| Superstructure | |
| Tank Capacity | 15000 liters |
| Tank material | High-quality carbon steel (optional aluminum alloy, stainless steel) |
| Compartment | 3 Compartments |
| Optional | Fuel dispenser, flow meters. |
