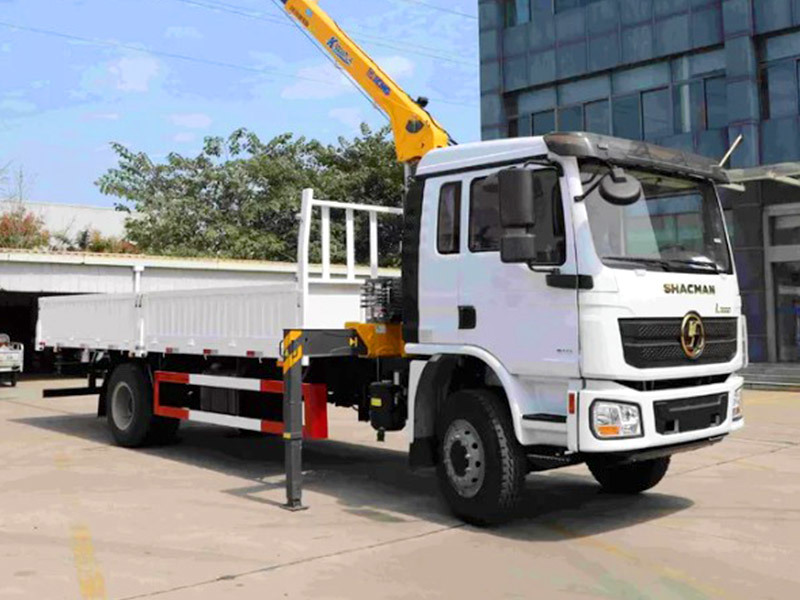

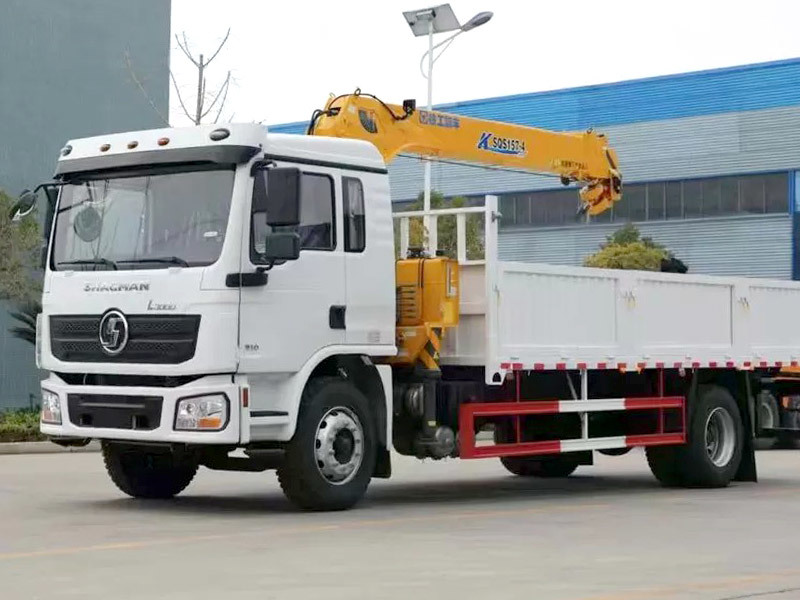

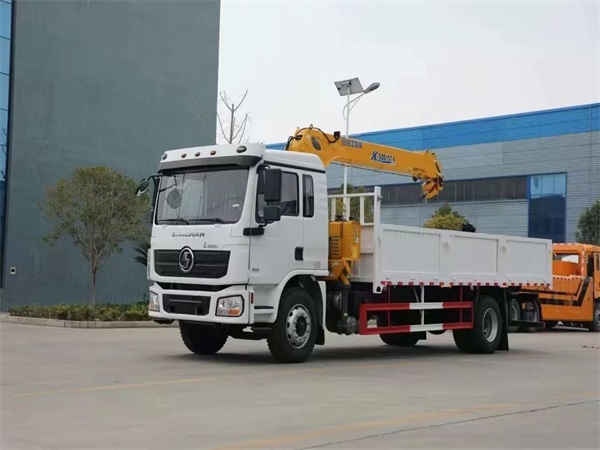

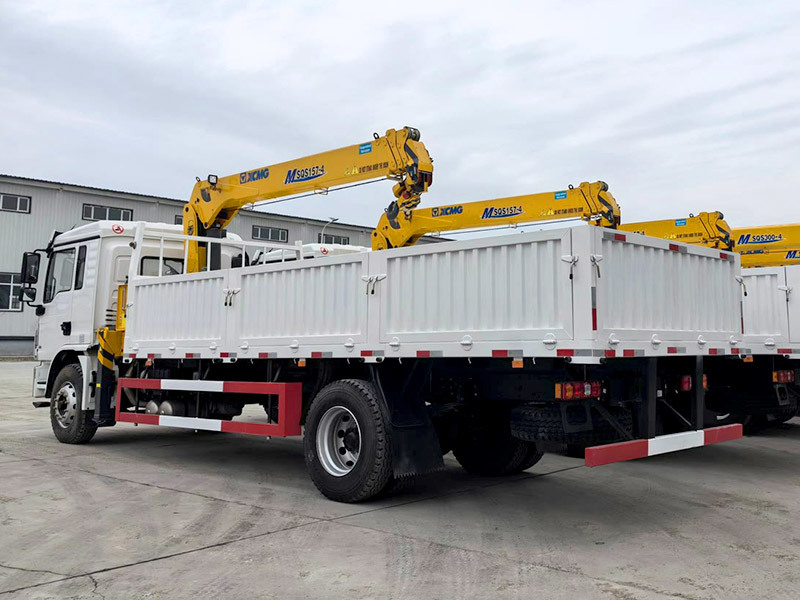

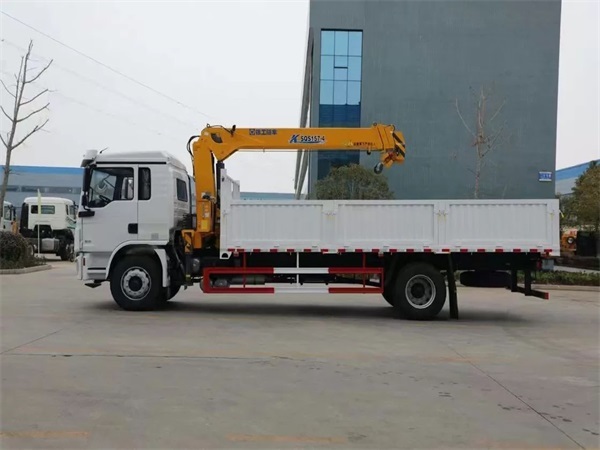

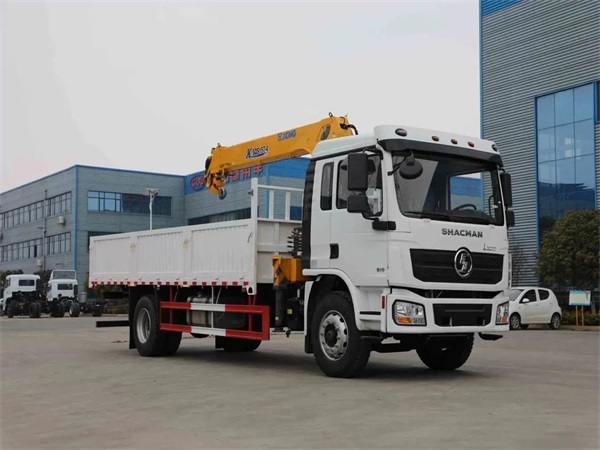

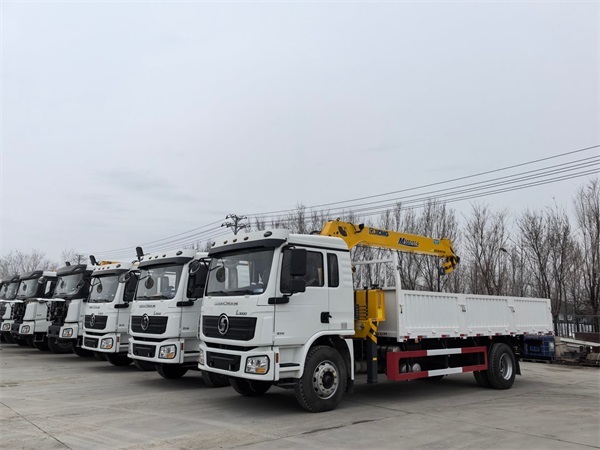

Shacman L3000 Crane Cargo Truck 4x2 Small Crane Truck 210hp Euro Ⅲ
- Commodity name： Shacman L3000 Crane Cargo Truck 4x2 Small Crane Truck 210hp Euro Ⅲ
- Condition： Brand New
- Tyre Quantity： 6 tyre
- Engine Power： 210HP
- Driving Type： 4×2
Keyword:
Product Description

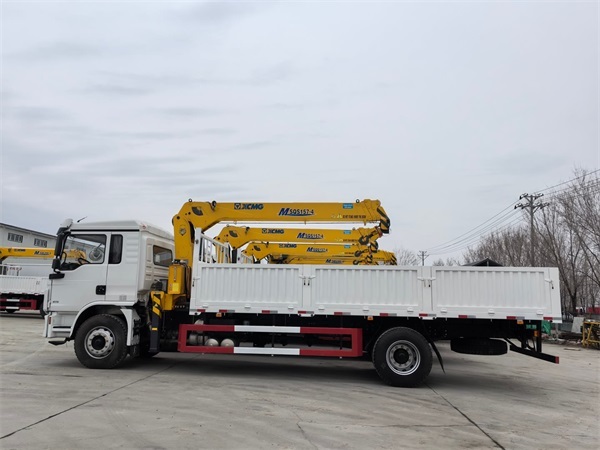

Shacman L3000 4x2 Crane Truck mainly includes lifting mechanism, luffing mechanism, slewing mechanism, winch mechanism, metal structure, automobile chassis, etc. It is applicable to port hoisting, bridge construction, site construction, power engineering, road administration engineering, garden engineering, etc. Its body is compact and reasonable, the whole machine design is reasonable, flexible and durable, and the transfer is fast and convenient.

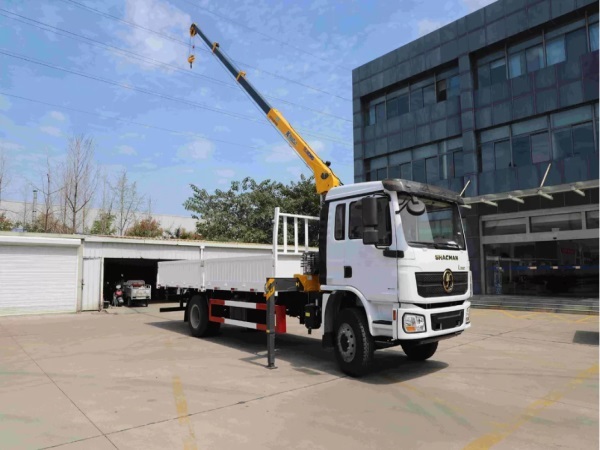

Shacman L3000 4x2 Crane Truck has an independent cab, wide vision and comfortable ride. It has a full swing strong steel boom, with high speed and stable rotation, high efficiency and fast and convenient operation. It has full-automatic hydraulic outrigger, large span and strong balance ability. The workshop is thickened and enlarged, the bearing capacity is strong, and the hydraulic dump is more convenient.
Product feature and application
Built for all purpose use, Shacman L3000 crane truck have been used in city around the globe. With great relablity and high attendance rate, Shacman L3000 crane truck is very versatile and can fulfill the requirements of its users.
Product details
● American VISTEON interior utilizing 100% natural negative ion fiber fabric. New material sleeper can promote rest quality.
● Adjustable steering wheel, which is easy to operate with great man-machine performance.
● Optimized shift operation: Telescopic shaft shift operation can absorb vibration from the chassis and ensure no spontaneous out of gear and control performance, improve the cab seal.
● Integrated structure floor mat is equipped with protective strips, great insulation, easy to clean and have good noise reduction properties.
Parameter
| Cargo Crane Truck Parameters | ||
| Model | SX5185JSQ8J571 | |
| Drive Type | 4x2 | |
| Weight | Gross Vehicle Weight | ≤18 |
| Dimensions | Wheelbase/(mm) | 5700 |
| Performance | Maximum speed/(km/h) | 60～75/115 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP6.210E32 | |
| Power/(Kw/HP) | 155w / 210Hp | |
| Maximum torque / (N.M)/rpm | 900/(1200-1600) N·m / r/min | |
| Displacement/(L) | 6.75L | |
| Emission standard | Euro/ III | |
| Gearbox | Brand | FAST |
| Model | 8JS85TM+QD40J | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 870×270(7+4) | |
| Suspension | Front | Front /rear multi-layer |
| Rear | Front /rear multi-layer | |
| Axles | Brand | HANDE |
| Front axle | MAN 4.8T | |
| Rear axle | 11.5T speed ratio-5.286 | |
| Tyres | Type | 10.00R20 |
| Fuel tank | Tank capacity/(L) | 200L |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN L3000 medium-length flat roof |
| Equipment | Hydraulic main seat, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free battery, SHACMAN Logo, full English logo. | |
| Super structure parameters | ||
| Crane lifting type | Hydraulic | |
| Crane capacity | 1.5-5ton | |
| container size | 3800*2000*400mm(customized ) | |
| container material | High strength carbon steel | |
| Container thickness | 3mm Side,4mm bottom | |
Packing And Delivery

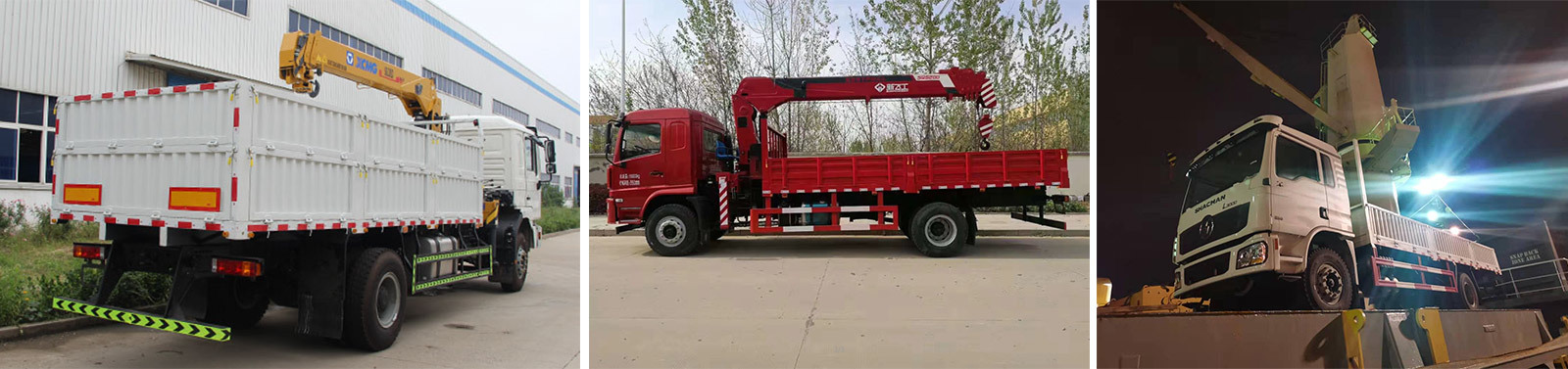

Overseas Use
