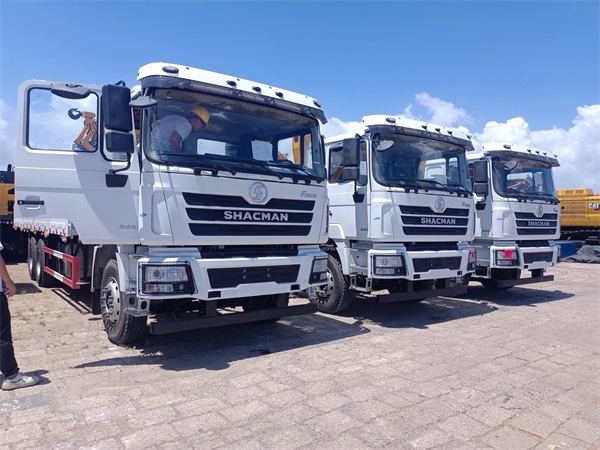

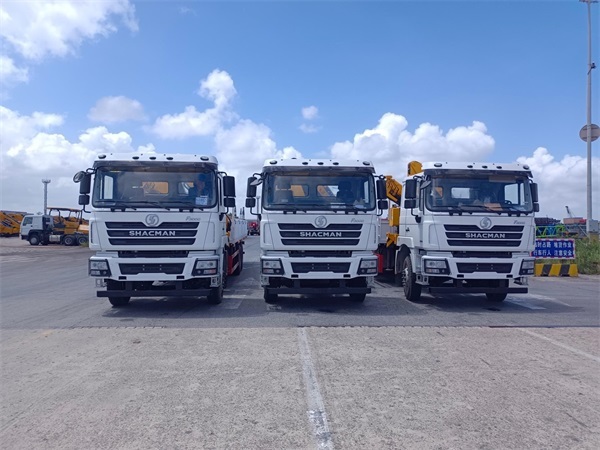

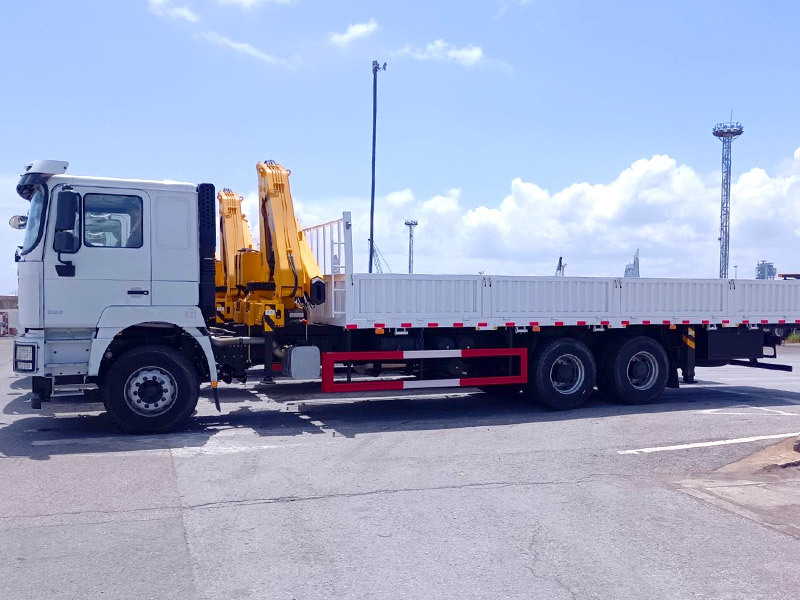

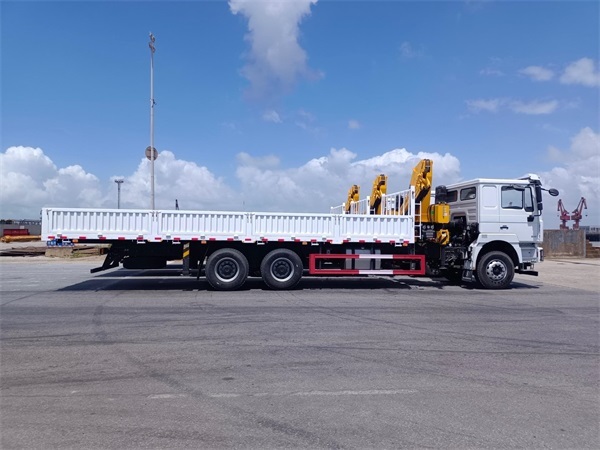

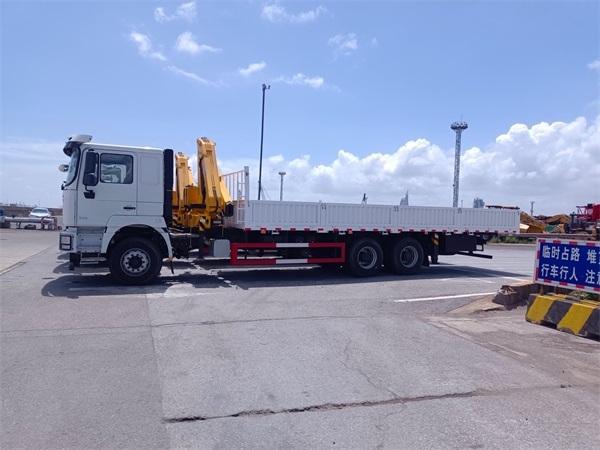

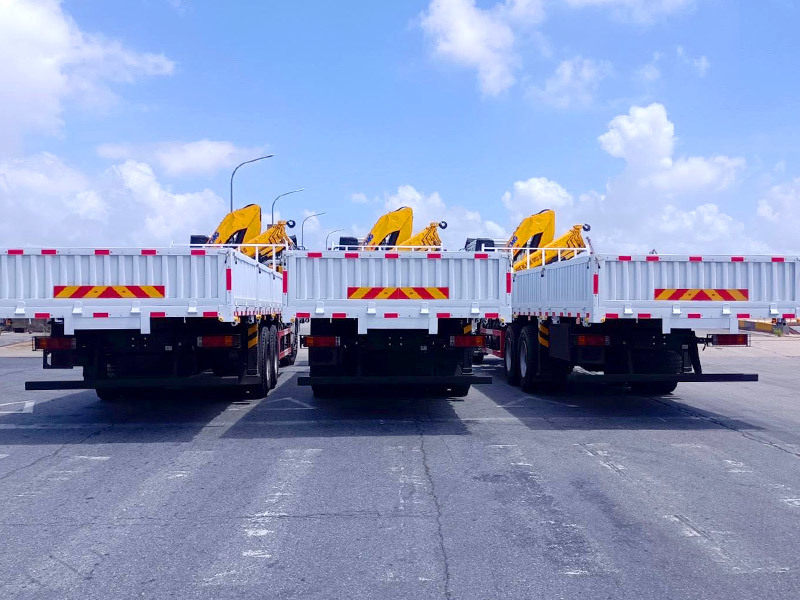

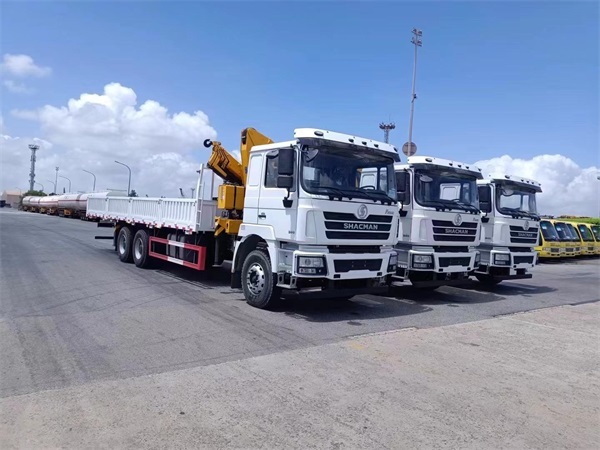

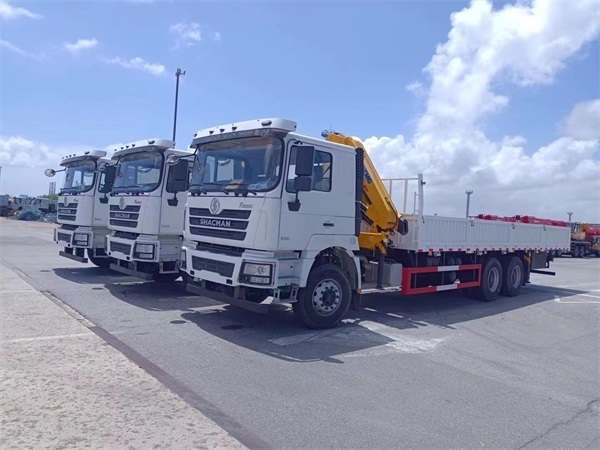

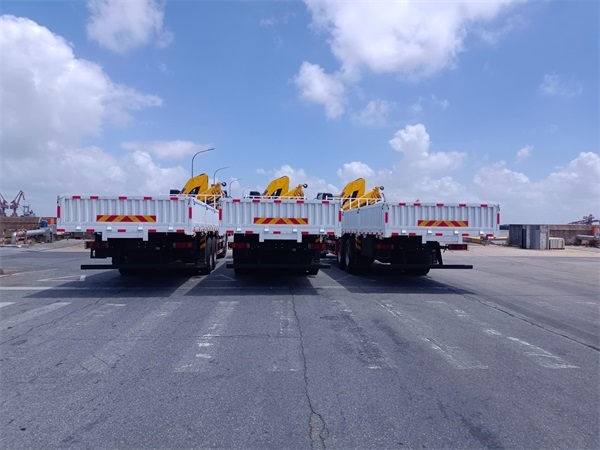

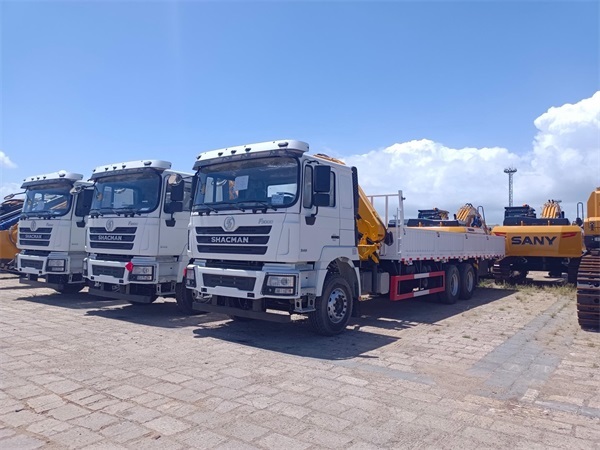

Shacman F3000 6X4 Cargo Truck with Crane 10 tons to 20 tons
- Commodity name： Shacman F3000 6X4 Cargo Truck with Crane 10 tons to 20 tons
- Condition： Brand New
- Tyre Quantity： 10 tyre
- Engine Power： 340HP
- Driving Type： 6×4
Keyword:
Product Description
Shacman F3000 6x4 Crane Truck has the characteristics of high power, convenient after-sales, and has played a great role in today's economic and social life. Shacman F3000 6x4 Crane Truck belongs to the top beam column in transportation and logistics. It is mainly used to transport some non removable objects like excavators, loaders and harvesters. It is widely used in the short-distance transportation of various bulk goods. Reduce transportation costs and improve work efficiency.
The driver's cab is equipped with extended rear-view mirror and supplementary blind mirror to reduce the driver's visual blind area and increase the visual wide angle, so as to further improve the safe driving. The driver's cab of the whole vehicle is equipped with double-layer stainless steel boarding and alighting pedals with humanized design and anti-skid and pedal resistance, which makes it safer for drivers and passengers to board and alight. Both sides of the truck mounted crane are provided with fastening devices and hooks, and both sides of the truck mounted crane are provided with fastening devices and hooks to facilitate the reinforcement, loading and transportation of goods when the truck is transporting goods. Improve the safety and stability during transportation.
Product feature and application
Built for all purpose use, Shacman F3000 crane truck have been used in city around the globe. With great relablity and high attendance rate, Shacman F3000 crane truck is very versatile and can fulfill the requirements of its users.
Product details
●Advanced noise isolation technology and strengthened vehicle body structure, and the application of polyester material can reduce cab noise greatly and increase insulation qualities.
● Optimized shift operation: Telescopic shaft shift operation can absorb vibration from the chassis and ensure no spontaneous out of gear and control performance, improve the cab seal.
● Integrated structure floor mat is equipped with protective strips, great insulation, easy to clean and have good noise reduction properties.
Parameter
| Cargo Crane Truck Parameters | ||
| Model | SX5255JSQDR584 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤35 |
| Dimensions | Wheelbase/(mm) | 5775+1400 |
| Performance | Maximum speed/(km/h) | 50～70/90 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP10.340E22 | |
| Power/(kw/HP) | 250kw / 300Hp | |
| Maximum torque / (N.M)/rpm | 1400 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro/ II | |
| Gear box | Brand | FAST |
| Model | RTD-11509C+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+5+8) | |
| Suspension | Front | Multi-layer plate spring 4 main plates + 4 U-shaped bolts |
| Rear | Multi-layer plate spring 4 main plates + 4 U-shaped bolts | |
| Axles | Brand | HANDE |
| Front axle | 7.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror,square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo. | |
| Super structure parameters | ||
| Crane lifting type | Hydraulic | |
| Crane capacity | 5-12ton | |
| container size | 6800*2350*600mm(customized ) | |
| container material | High strength carbon steel | |
| Container thickness | 3mm Side,4mm bottom | |
