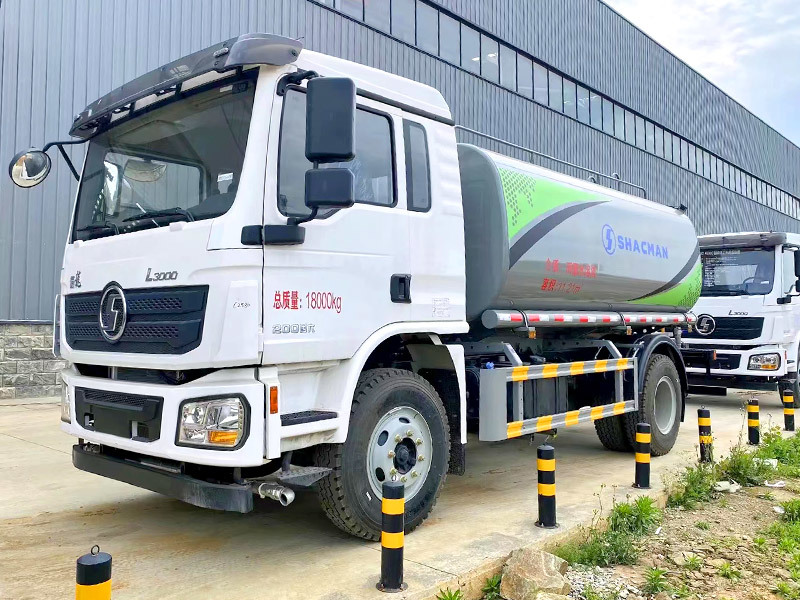

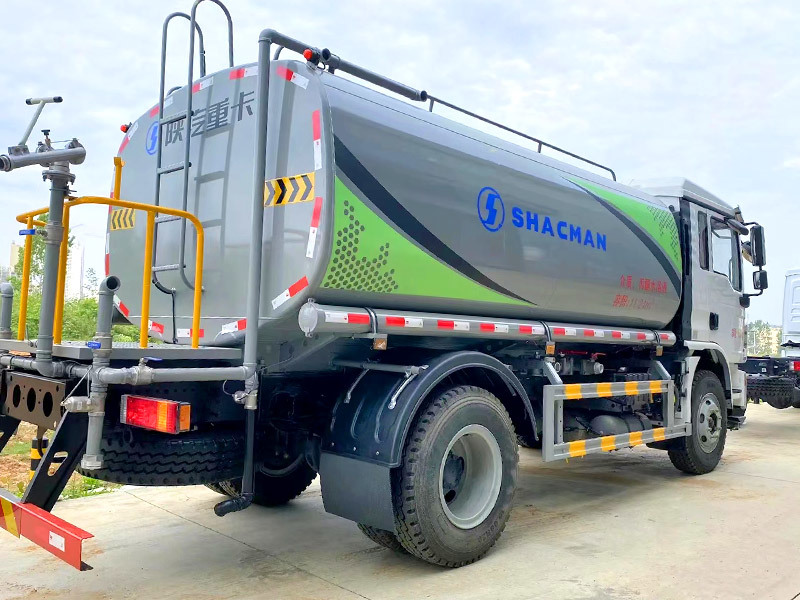

Shacman L3000 4X2 Sprinkler Truck Water Tank Truck on Sale
- Commodity name： Shacman L3000 4X2 Sprinkler Truck Water Tank Truck on Sale
- Condition： Brand New
- Tyre Quantity： 6 tyre
- Engine Power： 200HP
- Driving Type： 4×2
Keyword:
Product Description
Shacman L3000 4x2 Sprinkler Truck is suitable for all kinds of road flushing, tree, green belt, lawn greening, road, factory and mining enterprise construction, and high-altitude building flushing. It has the functions of watering, dust suppression, high and low level spraying, pesticide spraying, guardrail flushing, water transportation, drainage, emergency fire fighting and so on.
Shacman L3000 4x2 Sprinkler Truck can be used for temporary emergency fire sprinkler, and each sprinkler is equipped with a special fire interface. The engine drives the gearbox, and the power takeoff installed on the gearbox drives the sprinkler pump. The sprinkler pump generates the main power to spray the liquid inside the tank through the pipe network.
Product feature and application
Built for city and suburban use, Shacman L3000 sprinkler truck have been used in city sanitation departments in China and around the globe. With high attendance rate, Shacman L3000 sprinkler truck is very reliable and can fulfill the requirements of high usage by its operator.
Product details
● The cooling system is equipped with symmetrical left and right air chambers with advantages of shorter intercooler inlet pipe, reduced pipe drag resistance, tight piping layout and high ground clearance.
● The maximum turning angle of the front wheel is 46 degrees, making the vehicle easy to maneuver.
● New generation electrical system: Advanced CAN bus technology from Germany BOSCH with the function of automatic fault detection, the newly upgraded electrical system has been verified by the vehicle market of 12 million kilometers, with stable performance, safe and convenient operation.
Parameter
| Type | Shacman L3000 |
| Edition | Standard version |
| Vehicle model | SX5185GSS8J401 |
| Drive | 4x2 |
| Wheelbase (mm) | 4000 |
| Suspension | Multi leaf springs |
| Engine | YC04200-68 |
| Horsepower | 200HP |
| Emission standard | Euro II |
| Displacement | / |
| Rated output | / |
| Max.torque | / |
| Transmission | 8JS85TM-QD40J |
| Clutch | 430 |
| Frame | 870×250(7+4) |
| Front axle | 4.8T |
| Rear axle | 10T single reduction4.625 |
| Tire | 10.00R20 |
| Fuel | Diesel |
| Fuel tank | 200L （Iron shell） |
| Battery | 135Ah |
| Cab | ◆L3000 cab without top deflector ◆Hydraulic main seat ◆Front fixed and rear hydraulic suspension ◆Electric air conditioning ◆Water tank protection grille ◆Taillight protection grille |
| Optional | ●WABCO four-channel ABS ●Air main seat |
| Dimensions(L×W×H) |

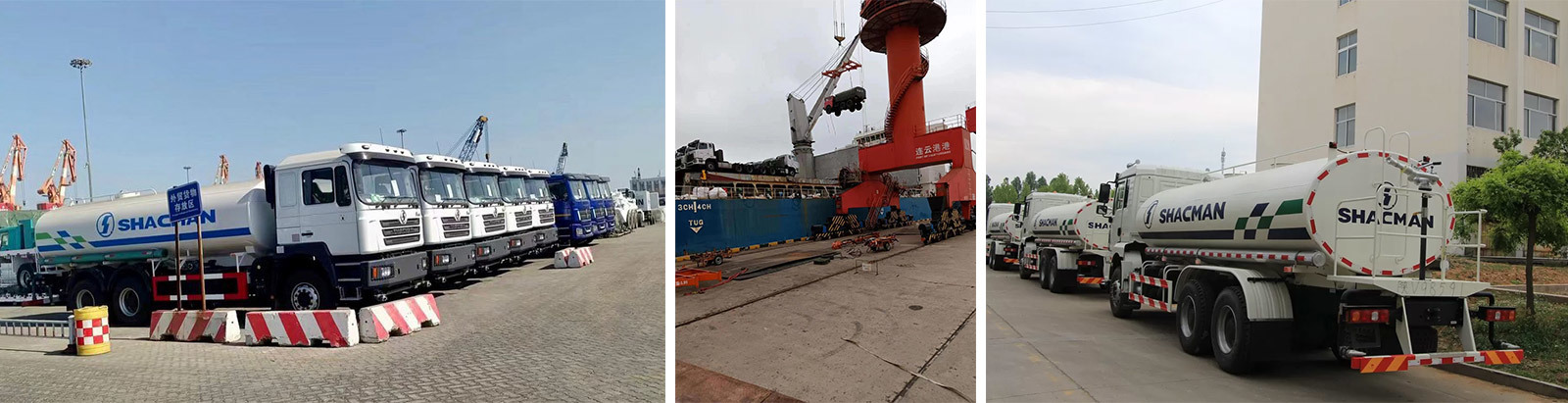

Packing And Delivery

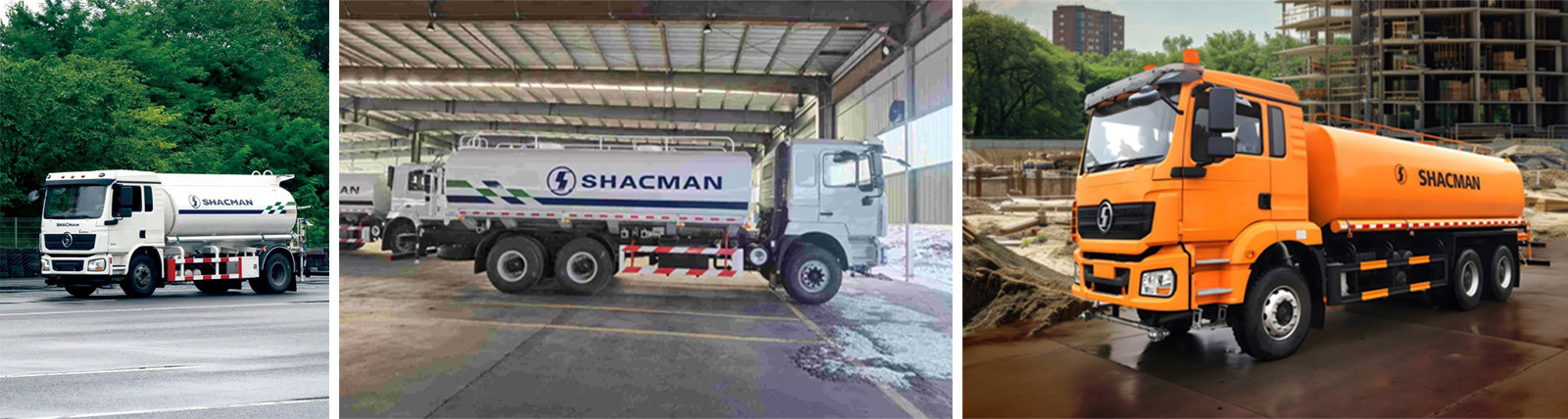

Overseas Use
