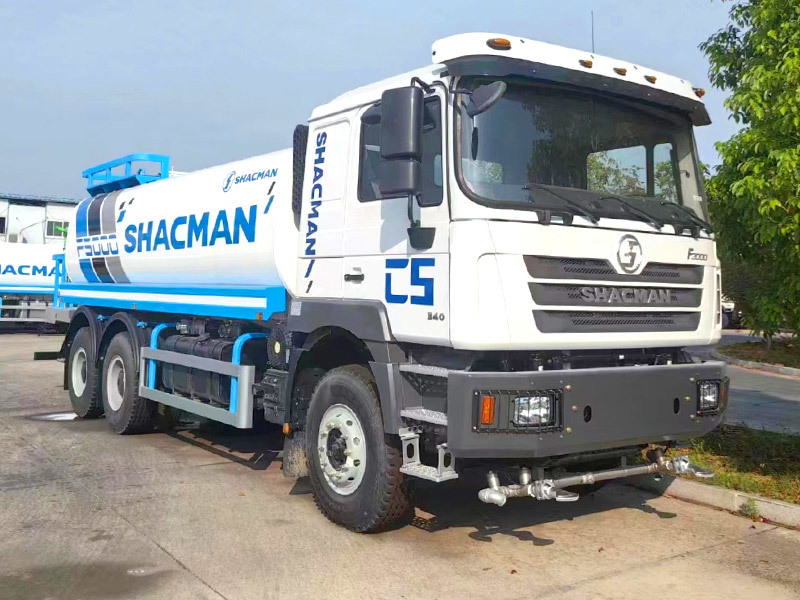

Shacman F3000 6x4 Sprinkler Trucks Water Carrier Truck for Sales
- Commodity name： Shacman F3000 6x4 Sprinkler Trucks Water Carrier Truck for Sales
- Condition： Brand New
- Tyre Quantity： 10 tyre
- Engine Power： 340HP
- Driving Type： 6×4
Keyword:
Product Description
Shacman F3000 6x4 Sprinkler Truck has forward flushing, rear sprinkling, side spraying, working platform behind the tank, and green sprinkling antiaircraft gun installed on the platform. The sprinkler can rotate 360 ° in all directions, and can be continuously adjusted into direct impact, heavy rain, moderate rain, light rain, drizzle, etc. a special high-power sprinkler pump is selected, with fire connector, gravity valve, self-priming and self-drainage functions.
Shacman F3000 6x4 sprinkler tank body is oval or square and round in structure, made of high-quality carbon steel, formed at one time by large plate bending machine, advanced equipment and automatic welding process, with more beautiful appearance and excellent sealing performance. The water tank of the whole vehicle is 2-3 rooms, the lower end of the middle diaphragm is provided with a through hole, and the tank is equipped with anti swing and anti wave diaphragm. The diaphragm in the tank has anti wave function to reduce the impact of liquid in the tank when the vehicle is driving. The surface of 6x4 Sprinkler Truck shall be coated with antirust paint and decorative paint.
Product feature and application
Built for city and suburban use, Shacman F3000 sprinkler truck have been used in city sanitation departments in China and around the globe. With high attendance rate, Shacman F3000 sprinkler truck is very reliable and can fulfill the requirements of high usage by its operator.
Product details
● American VISTEON interior utilizing 100% natural negative ion fiber fabric. New material sleeper can promote rest quality.
●Advanced noise isolation technology and strengthened vehicle body structure, and the application of polyester material can reduce cab noise greatly and increase insulation qualities.
● Adjustable steering wheel, which is easy to operate with great man-machine performance.
● Optimized shift operation: Telescopic shaft shift operation can absorb vibration from the chassis and ensure no spontaneous out of gear and control performance, improve the cab seal.
● Integrated structure floor mat is equipped with protective strips, great insulation, easy to clean and have good noise reduction properties..
Parameter
| Shacman F3000 Water Tank Truck Parameters | ||
| Model | SX5255GSSDR434 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 4375+1400 |
| Performance | Maximum speed/(km/h) | 50～70/90 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP10.340E22 | |
| Power/(kw/HP) | 250w / 340Hp | |
| Maximum torque / (N.M)/rpm | 1400 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro/ II | |
| Gear box | Brand | FAST |
| Model | RTD-11509C with QH50 flange extractor | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+5) | |
| Suspension | Front | Multi-layered leaf springs with 2 Main springs+2 U Bolts |
| Rear | Multi-layered leaf springs with 2 Main springs+2 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | MAN 7.5T | |
| Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioner, electric window crank, 165Ah maintenance-free battery, SHACMAN logo, full English logo. | |
